| Model Number: | HH-MSSSM |
| MOQ: | 100 PCS |
| Payment Terms: | L/C,T/T,Western Union |
| Supply Ability: | 10000 PCS PER 20 DAYS |
Stainless steel wire. 304, 304L, 316, 316L.
Production: woven/ perforated, vacuum sintering.
Woven weaving type: plain weave, twill weave and dutch weave.
Layer: 3 - 8 layers. Standard is 5 layers.
Thickness: 0.08mm - 8mm. Standard is 1.7mm.
Type:Filter disc. Filter tube. Filter element. Filter plate.
Working temperature: -200°C - 1000°C.

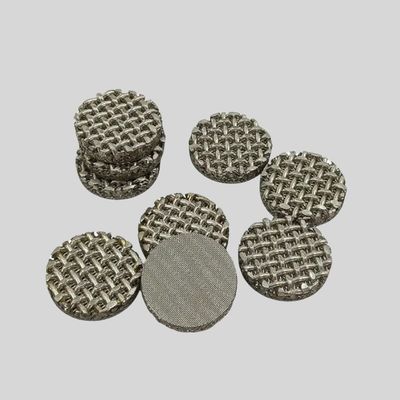

Sintered filter mesh is a kind of most widely used filtration material. It has 3 layers to 8 layers in total. The commonly is 5 layers. The material of sintered filter mesh can be stainless steel wire, monel wire, inconel and other wires. The materials are woven or perforated into meshes and then the meshes will be vacuum sintered into sintered filter mesh.

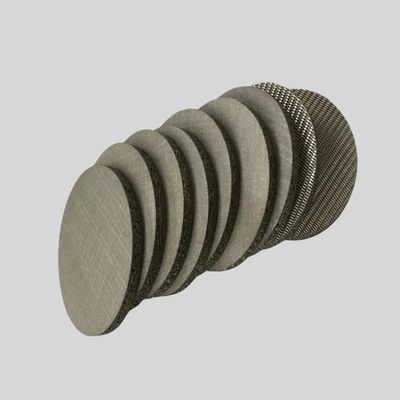

The Multi layers of sintered filter mesh are cover layer, filtration control layer, dispersion layer, support skeleton layer and skeleton layer. Sintered filter mesh can be filter discs, filter tube or other filter types.
| Micron rating | Layers | Net thickness | Weight sq per ft | ||
| 1 | 5 | .0669 in | 1.69926 mm | 2.6000 lb | 1.1804 kg |
| 2 | 3 | 0.0223 in | 0.56642 mm | 0.5800 lb | 0.2633 kg |
| 2 | 5 | 0.0669 in | 1.69926 mm | 2.6000 lb | 1.1804 kg |
| 5 | 1 | 0.0058 in | 0.14732 mm | 0.2500 lb | 0.1135 kg |
| 5 | 2 | 0.009 in | 0.2286 mm | 0.2500 lb | 0.1135 kg |
| 5 | 3 | 0.0247 in | 0.62738 mm | 0.6400 lb | 0.2906 kg |
| 5 | 5 | 0.0669 in | 1.69926 mm | 0.6250 lb | 0.2838 kg |
| 10 | 2 | 0.0669 in | 1.69926 mm | 0.6250 lb | 0.2838 kg |
| 10 | 3 | 0.0284 in | 0.72136 mm | 0.6400 lb | 0.2906 kg |
| 10 | 5 | 0.0669 in | 1.69926 mm | 0.6250 lb | 0.2838 kg |
| 15 | 3 | 0.0247 inch | 0.62738 mm | 0.5900 lb | 0.2679 kg |
| 15 | 5 | 0.0669 in | 1.69926 mm | 2.6000 lb | 1.1804 kg |
| 20 | 5 | 0.0669 in | 1.69926 mm | 2.6000 lb | 1.1804 kg |
| 25 | 3 | 0.0339 in | 0.86106 mm | 0.6250 lb | 0.2838 kg |
| 25 | 5 | 0.0669 in | 1.69926 mm | 0.6250 lb | 0.2838 kg |
| 30 | 5 | 0.0669 in | 1.69926 mm | 2.6000 lb | 1.1804 kg |
| 40 | 5 | 0.0669 in | 1.69926 mm | 0.6250 lb | 0.2838 kg |
| 44 | 2 | 0.0144 in | 0.36576 mm | 0.2800 lb | 0.1271 kg |
| 44 | 2 | 0.036 in | 0.9144 mm | 0.4600 lb | 0.2088 kg |
| 44 | 3 | 0.0246 in | 0.62484 mm | 0.5200 lb | 0.2361 kg |
| 50 | 5 | 0.0669 in | 1.69926 mm | 2.6000 lb | 1.1804 kg |
| 55 | 2 | 0.037 in | 0.9398 mm | 0.4600 lb | 0.2088 kg |
| 55 | 3 | 0.0245 in | 0.6223 mm | 0.5200 lb | 0.2361 kg |
| 74 | 3 | 0.0253 in | 0.64262 mm | 0.5400 lb | 0.2452 kg |
| 74 | 3 | 0.0287 in | 0.72898 mm | 0.4400 lb | 0.1998 kg |
| 75 | 5 | 0.0669 in | 1.69926 mm | 0.6250 lb | 0.2838 kg |
| 100 | 5 | 0.0669 in | 1.69926 mm | 0.6250 lb | 0.2838 kg |
| 105 | 2 | 0.0195 in | 0.4953 mm | 0 | 0 |
| 105 | 2 | 0.0195 in | 0.4953 mm | 0.3700 lb | 0.1680 kg |
| 105 | 3 | 0.0259 in | 0.65786 mm | 0.5500 lb | 0.2497 kg |
| 120 | 5 | 0.0669 in | 1.69926 mm | 0.6250 lb | 0.2838 kg |
| 140 | 2 | 0.0379 in | 0.96266 mm | 0 | 0 |
| 140 | 2 | 0.0202 in | 0.51308 mm | 0.3800 lb | 0.1725 kg |
| 140 | 3 | .0302 in | .76708 mm | .6200 lb | .2815 kg |
| 178 | 1 | 0.0088 in | 0.22352 mm | 0.1700 lb | 0.0772 kg |
| 234 | 1 | .0125 inch | .3175 mm | .2400 lb | .1090 kg |
| 279 | 1 | 0.0144 in | 0.36576 mm | 0.2900 lb | 0.1317 kg |
| 380 | 1 | 0.0147 in | 0.37338 mm | 0.2800 lb | 0.1271 kg |
| 540 | 1 | 0.0155 in | 0.3937 mm | 0.3000 lb | 0.1362 kg |
| 860 | 1 | 0.0238 in | 0.60452 mm | 0.3500 lb | 0.1589 kg |
| 864 | 2 | 0.032 in | 0.8128 mm | 0 | 0 |
| 1905 | 1 | – | – | 0.1700 lb | 0.0772 kg |
| 2460 | 1 | 0.0397 in | 1.00838 mm | 0.4200 lb | 0.1907 kg |
High filtration efficiency.
High mechanical strength.
High permeability and porosity.
Anti-corrosion and anti-pressure.
Even distribution of pores catalysis recycling accurate filtering.
Can be used at high and low temperature.
Easy to clean and can be used for many times.
widely used in precision pressure filters, fuel filtration, vacuum filter, air filter and heat dissipation treatment, and make filter element raw materials. At the same time, it can be used for construction, textile, medicine, aerospace, metallurgy, coal carbon, minerals. Light industry, machinery and other technological fields
