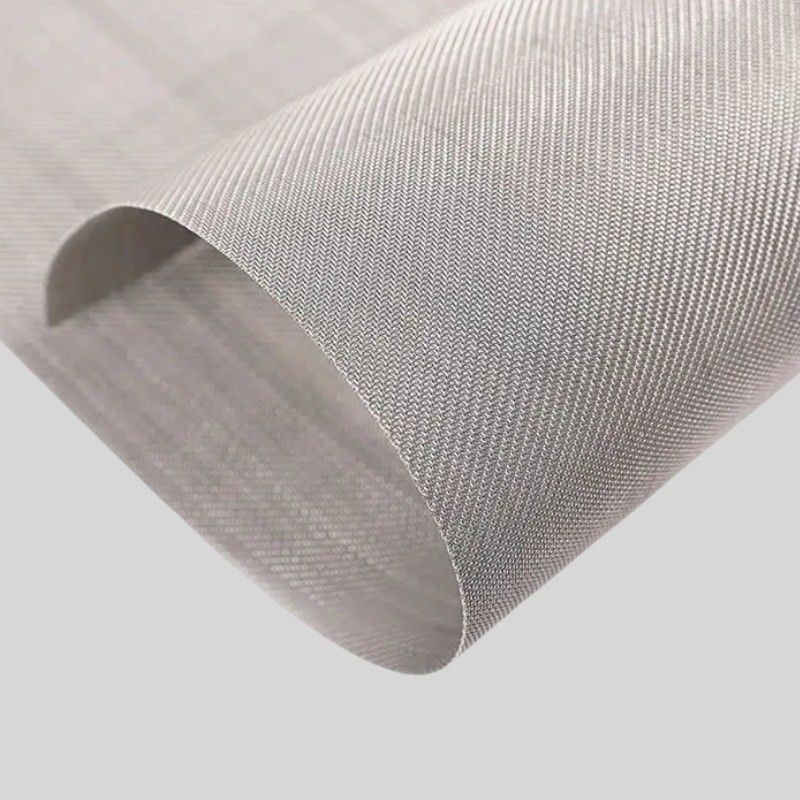

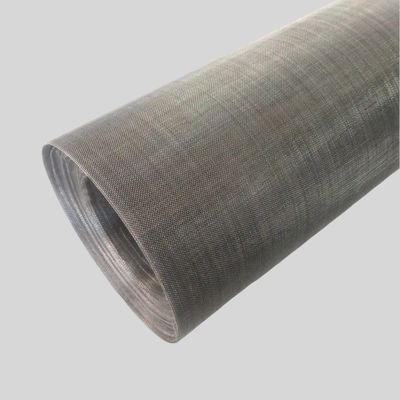

ASTMA240 UNS S32750 Super Duplex Stainless Steel Wire Mesh

ASTMA240 UNS S32750 Super Duplex Stainless Steel Wire Mesh

ASTMA240 UNS S32750 Super Duplex Stainless Steel Wire Mesh

Model Number: HH-SSSDU
MOQ: 10 SQUARE METERS
Payment Terms: L/C,T/T,Western Union
Supply Ability: 2000 ROLLS PER 30 DAYS
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
ISO9001-2015
Name:
Super Duplex Wire Mesh
Material:
S32750 (F53/SAF2507) Alloy
Mesh:
10-200
Wire Diameter:
0.053mm-0.6mm
Max Width:
1600 Mm
Weave Style:
PLAIN STYLE
Packaging Details:
outside use plastic wooden bags, +wooden case/carton pipes/wooden pallets
Supply Ability:
2000 ROLLS PER 30 DAYS
Highlight:

Duplex Stainless Steel Wire Mesh

,

Super Duplex Wire Mesh

,

Duplex ss wire mesh

Product Description



ASTMA240 UNS S32750 Stainless Steel Super Duplex Wire Mesh



Description of UNS S32750 Super Duplex Wire Mesh



S32750 (F53/SAF2507) alloy is super duplex stainless steel made up of 250%Cr, 40% Mo and 7% Ni and N. This steel is mainly used in chemical, petrochemical and marine equipment which required special in tension and corrosion resistance.



S32750 is with strong ability to resist chloride corrosion, higher heat conductivity and lower thermal expansion corrosion. High chromium, molybdenum and nitrogen content makes it has strong ability to resist pitting corrosion, crevice corrosion and general corrosion. Compared with 2205, S32750 is with corrosion resistance ability suited to extreme corrosion environment. Its impact strength is high, but S32750 alloy is not suitable for environment with temperature higher than 299℃, then its toughness will be reduced.



Specification of UNS S32750 Super Duplex Wire Mesh



UNS S32750(SAF2507) Super Duplex Stainless Steel Wire Mesh
Mesh Count Wire diameter(mm) Aperture(mm) Max width(m)
10 0.60 1.94 1.60
20 0.40 0.87 1.60
30 0.30 0.55 1.60
40 0.23 0.40 1.60
50 0.20 0.31 1.60
60 0.15 0.27 1.60
70 0.12 0.24 1.60
80 0.13 0.19 1.60
90 0.12 0.16 1.60
100 0.10 0.15 1.60
120 0.09 0.12 1.60
150 0.063 0.11 1.60
180 0.053 0.01 1.60
200 0.053 0.07 1.60



Note: Special size and specifications can be made according to customers requires.



Super Duplex Hexagonal Wire Mesh Equivalent Grade



STANDARD WERKSTOFF NR. UNS
Super duplex 1.4410 S32750 / S32760



UNS S32760 Wires Mechanical Properties



Grade Density Melting point Yield strength(0.2% offset) Tensile strength Elongation
S32750/S32760 7.8g/cm3 1350°C(2460°F) PSi-80000, MPa-550 PSi-116000, MPa-800 15%



Applications of Super Duplex Steel 2507 Wire Mesh



  • Use for bleaching in the paper and pulp industry
  • Chemical processing
  • Oil extractions
  • Seawater handling
  • High chloride and marine environments



Material Testing of Super Duplex Filler Wire


  • Mechanical testing(tensile of area)
  • Positive material identification – pmi testing
  • Micro and macro test
  • Flaring test
  • Chemical analysis(spectro analysis)
  • Flattening test
  • Pitting resistance test
  • Intergranular corrosion test
