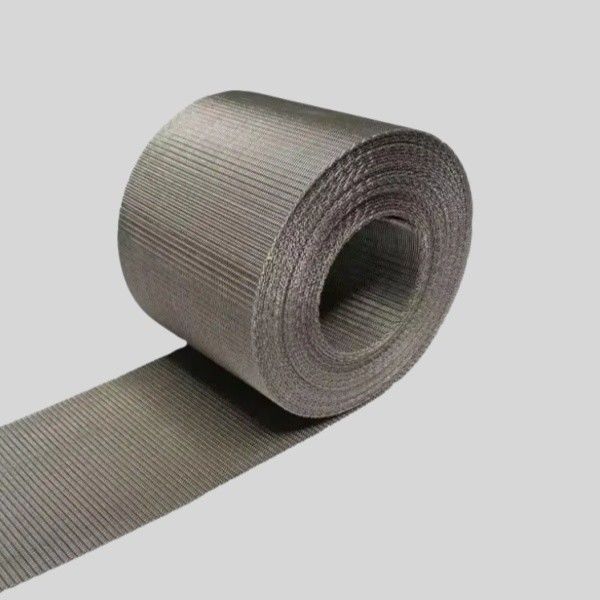

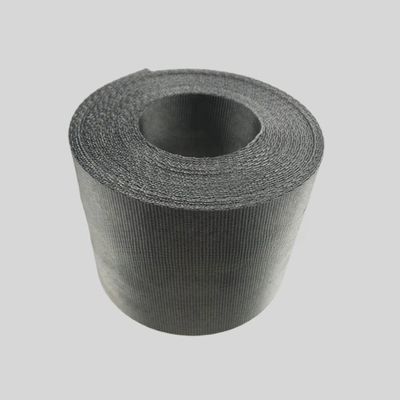

Stainless Steel Dutch Weave Wire Mesh For Centrifugal Separation

Quick details of Stainless Steel Dutch Weave Wire Mesh

Material: 201, 304, 316, 316L , 430 etc

Normal mesh size:

reversed dutch weave: 48x10mesh to 720x150mesh.

plain weave: 0.5X0.5mesh to 635X635 mesh;

twill weave:20x20mesh to 400x400mesh;

plain dutch weave:10X64mesh to 80X700mesh;

twill dutch weave:20x250mesh to 400X2800mesh;

Wire diameter:0.025mm-1.8mm

Apeature: 0.038mm-10.9mm

Roll width:0.9144m,1.0m,1.22m,1.524m,1.83m,etc. any width available at request.

Roll length:30m or 50m,any length available at request.

Sample:Free sample sent on request.

Descrpition of Stainless Steel Dutch Weave Wire Mesh

Dutch weave woven wire mesh is manufactured from stainless steel wire. Different from plain weave woven wire mesh and twill woven wire mesh, the dutch weave woven wire mesh has different diameter in the weft and warp directions. Commonly the warp wire is coarser wire, which can supply the high tensile strength for the wire mesh. The weft wire is finer wire, which can ensure the excellent filtering performance. This unique structure with greater strength and finer openings is primarily used as a filter cloth.

Dutch weave woven wire mesh can be woven in both plain dutch weave and twill dutch weave. They have their own characteristics, which can be used in different applications. There is also a specially designed and applied products.

Specitification of Stainless Steel Dutch Weave Wire Mesh

Applications of dutch weave woven wire mesh

Dutch weave woven wire mesh is mainly used for filtering. It provides superior filtration capabilities for a wide range of areas applications.

• Aerospace.
• Petrochemical.
• Pharmaceutical.
• Mining.
• Waste water.

According to the material of filtering, the plain dutch and twill dutch can be used in different applications.

• The plain dutch weave woven wire mesh is mainly used for filtering and separating liquid and slurry products.
• The twill dutch weave woven wire mesh is used for filtering heavy materials.
