Name: Fire Knife Proof Security Screen Mesh
Brand: Anping County Huihao Wire Mesh Manufacture Co., Ltd
SKU: HH-SSM-08
Availability: InStock

Model Number:	HH-SSM-08
MOQ:	10 pieces
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	5000 square meters per 20 days

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO9001-2015

Name:

Security Screen Mesh

Wire Dia:

0.8mm /0.9mm

Material:

Stainless Steel 316

Mesh Standard:

10x10, 11x11

Hole Size:

1.4 Mm -2.0mm

Grade:

Marine Grade

Width:

750mm-1500mm

Length:

2000 Mm - 3000 Mm

Packaging Details:

wooden case in common

Supply Ability:

5000 square meters per 20 days

Highlight:

Fire Proof Security Screen Mesh

Knife Proof Security Screen Mesh

marine grade Security Screen Mesh

Product Description

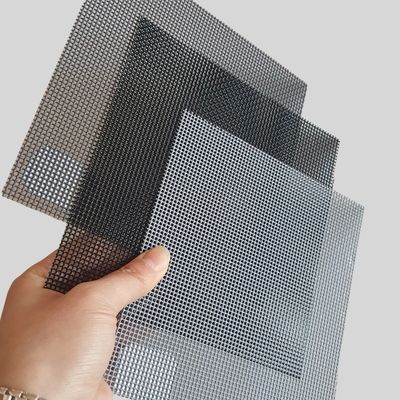

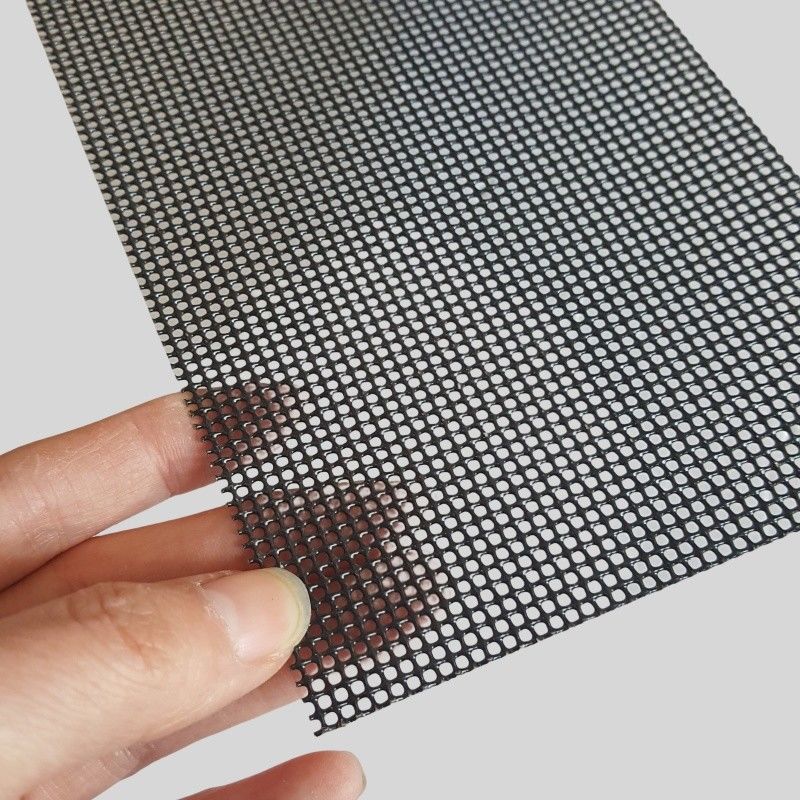

Fire And Knife Proof Security Screen Mesh In stainless steel wire

Quick details of Security Screen Mesh

• Mesh11x11, wire diameter 0.80mm(the most popular specification)

• Mesh10x10, wire diameter 0.90mm.

• Mesh12x12, 14x14 also popular sold in Southeast Asia. (Known as Safety Mesh)

• Sheet size: 750mmx2000mm (2400mm), 900mmx2000mm (2400mm),1200mmx2000mm (2400mm),1500mmx2000mm

• 316 Marine Grade Stainless Steel with higher Ni (11%) content.

• Ultimate Tensile Strength minimum 950 mPa.

• Extensively tested for dynamic impact, knife shear and salt spray.

Description of Security Screen Mesh

Security wire mesh, also known as security screen, its characters of esthetic beauty and fire-and-knife proof is making security mesh to replace the traditional iron grating for preventing burglary. In addition, not only keep thieves out from houses, security wire mesh can also be used as insect screens to separate flies and mosquitos.

Specification of Security Screen Mesh

Material	MeshSize	HoleSize	SheetSize


High tensile 316 Marine grade stainless Akzo Nobel powder coating Color:blackonly	8meshx1.2mm	2.0mm	WidthxLength 750mmx2000mm/2400mm/3000mm/3500mm 900mmx2000mm/2400mm/3000mm/3500mm 1000mmx2000mm/2400mm/3000mm/3500mm 1200mmx2000mm/2400mm/3000mm/3500mm 1500mmx2000mm/2400mm/3000mm/3500mm
	9meshx1.0mm	1.8mm
	10meshx0.8mm	1.8mm
	10meshx0.9mm	1.6mm
	10meshx1.0mm	1.5mm
	11meshx0.8mm	1.5mm
	11meshx0.9mm	1.4mm
	12meshx0.7mm	1.4mm
	12meshx0.8mm	1.3mm
	12meshx0.9mm	1.2mm
	14meshx0.5mm	1.3mm
	14meshx0.55mm	1.2mm
	14meshx0.6mm	1.2mm
	18meshx0.32mm	1.0mm

316 Marinegrade stainless steel wire Akzo Nobel powder coating Color:blackonly	8meshx1.2mm	2.0mm	Width xLength 750mmx2000mm/2400mm/3000mm/3500mm 900mmx2000mm/2400mm/3000mm/3500mm 1000mmx2000mm/2400mm/3000mm/3500mm 1200mmx2000mm/2400mm/3000mm/3500mm 1500mmx2000mm/2400mm/3000mm/3500mm
	8meshx1.3mm	1.9mm
	9meshx0.9mm	1.9mm
	9meshx1.0mm	1.8mm
	10meshx0.9mm	1.6mm
	10meshx1.0mm	1.5mm
	11meshx0.8mm	1.5mm
	11meshx0.9mm	1.4mm
1.Sheet Size:Can be customized 2.Coating Color:Black/Gray/White 3.Packing:50 pcs per polywood box

Fire Knife Proof Security Screen Mesh 0

Standard of Security Screen Mesh

Knife Shear Test: AS5039
Dynamic Impact Test :AS5039
Anti-Jemmy Test: AS5039
Pull Test: AS5039

1000 Hours Salt Spray Test: AS2331.3.1
Cyclone Rated: AS1170.2
Fire Attenuation: AS1530.4

Features of Security Screen Mesh

High tensile 316 marine grade stainless steel
Enjoy clear unobstructed views
Corrosion resistant
Prevent 99% of mosquitos passing through
10 years warranty
Fall prevention
True security against break-in
Fire prevention
Cyclonic impact protection
