Marine Grade Stainless Steel Security Mesh security window screens

Name: Marine Grade Stainless Steel Security Mesh security window screens
Brand: Anping County Huihao Wire Mesh Manufacture Co., Ltd
SKU: HH-SSM-7
Availability: InStock

Model Number:	HH-SSM-7
MOQ:	10 sheet mesh
Price:	contact with us
Payment Terms:	L/C,T/T,Western Union,MoneyGram
Supply Ability:	8000 pieces mesh sheet per 30 days

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO9001-2015

Name:

Marine Grade Security Mesh

Material:

Marine Grade Stainless Steel 316

Wire Diameter:

0.8mm-1.2mm

Mesh Count:

8- 11 Mesh

Color:

Black , Grey , White Or As Your Demands

Application:

Security Window Screens

Packaging Details:

wooden case package or to be your requirements

Supply Ability:

8000 pieces mesh sheet per 30 days

Highlight:

Powder Coated SS Security Mesh

316 Stainless Steel Security Mesh

316 security window screens

Product Description

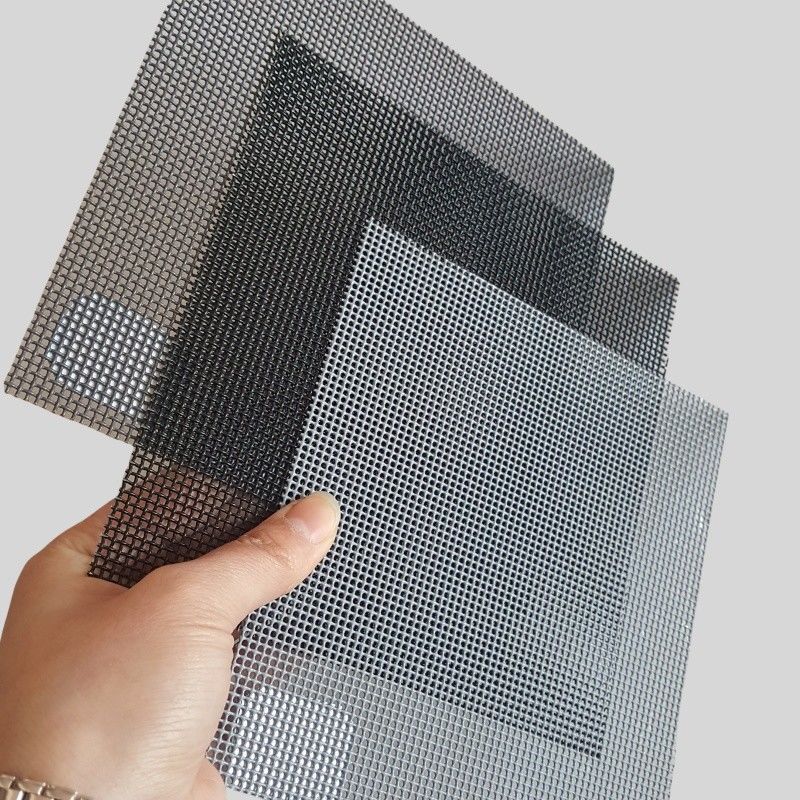

Marine Grade Stainless Steel Security Mesh

Quick details of Marine Grade Security Mesh

Material: 316 grade stainless steel

Surface Finish: Powder Coated

Color: Black , grey , white or as your demands

Wire Diameter: 0.80mm,0.90mm, 1mm, 1.2mm

Usual Size: 750mmx2000mm;750mm*2400mm;900mm*2000mm;900mm*2400mm;1200mm*2000mm;1200mm*2400mm.

Description of Marine Grade Security Mesh

It is high tensile AISI316 stainless steel wire, tolerance(+/-0.01mm), tensile strength is more than 900Mpa (900N). The holes are square and the wires are very strong (not sliding), screen surface is flattened after we weave the wires to mesh screen.

Marine grade stainless steel 316 security door mesh is used near sea or salty air areas. This material can protect the stainless steel from tea staining. This mesh is also used as a bush fire protection mesh, anti-mosquito mesh, debris protection mesh and crime safe mesh.

Security mesh Quality Details

Sheets are flat (no any wave on the surface)
Square and clear hole without burs
Exact hole size and wire thickness
No obvious tiger lines on the surface
No color difference on the surface
No sundries on the surface
No folded wires on edges
Tolerance of diagonal length is within +/-5mm
Edge cutted along one wire

Specification of Marine Grade Security Mesh

Material	MeshSize	HoleSize	SheetSize


High tensile 316 Marine grade stainless Akzo Nobel powder coating Color:blackonly	8meshx1.2mm	2.0mm	WidthxLength 750mmx2000mm/2400mm/3000mm/3500mm 900mmx2000mm/2400mm/3000mm/3500mm 1000mmx2000mm/2400mm/3000mm/3500mm 1200mmx2000mm/2400mm/3000mm/3500mm 1500mmx2000mm/2400mm/3000mm/3500mm
	9meshx1.0mm	1.8mm
	10meshx0.8mm	1.8mm
	10meshx0.9mm	1.6mm
	10meshx1.0mm	1.5mm
	11meshx0.8mm	1.5mm
	11meshx0.9mm	1.4mm

316 Marinegrade stainless steel wire Akzo Nobel powder coating Color:blackonly	8meshx1.2mm	2.0mm	Width xLength 750mmx2000mm/2400mm/3000mm/3500mm 900mmx2000mm/2400mm/3000mm/3500mm 1000mmx2000mm/2400mm/3000mm/3500mm 1200mmx2000mm/2400mm/3000mm/3500mm 1500mmx2000mm/2400mm/3000mm/3500mm
	8meshx1.3mm	1.9mm
	9meshx0.9mm	1.9mm
	9meshx1.0mm	1.8mm
	10meshx0.9mm	1.6mm
	10meshx1.0mm	1.5mm
	11meshx0.8mm	1.5mm
	11meshx0.9mm	1.4mm
1.Sheet Size:Can be customized 2.Coating Color:Black/Gray/White 3.Packing:50 pcs per polywood box
