Ss Cable Inter Woven Rope Mesh For Safety Barries

Brand Name:	HUIHAO KASITE
Model Number:	HH-RM
MOQ:	1 M2 of rope mesh
Price:	USD14-USD28 per square metes for rope mesh
Payment Terms:	T/T
Supply Ability:	6000 m2 rope mesh per 30 days

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO9001-2015

Name:

Inter Woven Rope Mesh

Application:

Safety Barries

Opening Angle:

90 Degree

Material:

Stainless Steel 304/ 316

Main Feature:

Strong And Flexible

Frame System:

Support Customized

Packaging Details:

carton/ pallet/ wooden case for rope mesh

Supply Ability:

6000 m2 rope mesh per 30 days

Highlight:

stainless steel cable rope mesh

woven wire rope safety barriers

interwoven rope mesh for fencing

Product Description

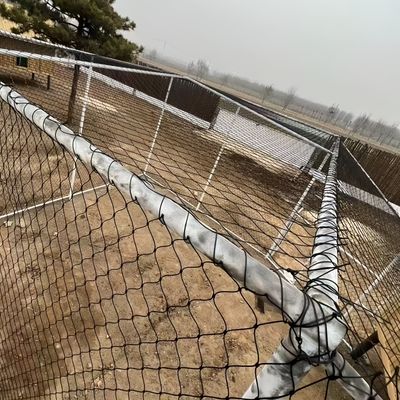

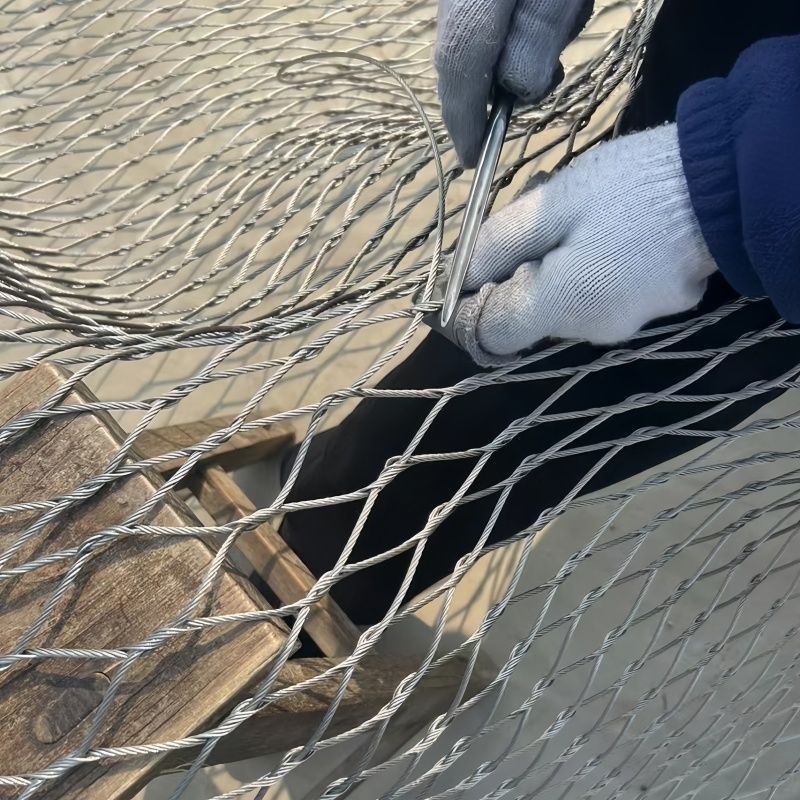

SS Cable Inter Woven Rope Mesh For Safety Barriers

The standard rope mesh holes of SS cable inter-woven rope mesh feature a diamond shape with 90 degrees top angle. Key production parameters include cable diameter, mesh size (center distance), and panel width/length dimensions. For custom mesh shapes, we require detailed drawings for precise manufacturing.

Specification of Inter Woven Rope Mesh

Shape: Diamond plate, triangular plate, hexagonal plate, custom designs
Thickness: 1.2-2 mm (customizable)
Surface treatment: Painting available
Color options: RAL color chart selection
Customization: Logo imprinting, pattern splicing available

Item No.	Cable Diameter (inch)	Cable Diameter (mm)	Mesh Opening Size (inch)	Mesh Opening Size (mm)
hh-3212W	1/8	3.2	4.75 x 4.75	120 x 120
hh-3210W	1/8	3.2	4 x 4	102 x 102
hh-3290W	1/8	3.2	3.55 x 3.55	90 x 90
hh-3276W	1/8	3.2	3 x 3	76 x 76
hh-3250W	1/8	3.2	2 x 2	51 x 51
hh-2410W	3/32	2.4	4 x 4	102 x 102
hh-2490W	3/32	2.4	3.55 x 3.55	90 x 90
hh-2476W	3/32	2.4	3 x 3	76 x 76
hh-2460W	3/32	2.4	2.4 x 2.4	60 x 60
hh-2450W	3/32	2.4	2 x 2	51 x 51
hh-2076W	5/64	2.0	3 x 3	76 x 76
hh-2060W	5/64	2.0	2.4 x 2.4	60 x 60
hh-2050W	5/64	2.0	2 x 2	51 x 51
hh-2038W	5/64	2.0	1-1/2 x 1-1/2	38 x 38
hh-1676W	1/16	1.6	3 x 3	76 x 76
hh-1650W	1/16	1.6	2 x 2	51 x 51
hh-1638W	1/16	1.6	1-1/2 x 1-1/2	38 x 38
hh-1630W	1/16	1.6	1.2 x 1.2	30 x 30
hh-1625W	1/16	1.6	1 x 1	25.4 x 25.4
hh-1238W	3/64	1.2	1-1/2 x 1-1/2	38 x 38
hh-1230W	3/64	1.2	1.2 x 1.2	30 x 30
hh-1225W	3/64	1.2	1 x 1	25.4 x 25.4
hh-1220W	3/64	1.2	4/5 X 4/5	20 x 20

Advantages of Inter Woven Rope Mesh

Exceptional Durability: Constructed from stainless steel 304/316L material for superior weather resistance. Customizable rope structure, wire diameter, and plate thickness to meet specific load requirements.
Flexible Customization: Fully customizable dimensions and colors to match any design concept.
Decorative & Functional: Three-dimensional layered effect suitable for building facades, interior partitions, and landscape decoration. Higher fire resistance rating than alternative materials.
Balanced Transparency: Maintains open spatial feel while serving as effective screening, balancing ventilation and privacy needs.
