Wire Rope Mesh
Created with Pixso.

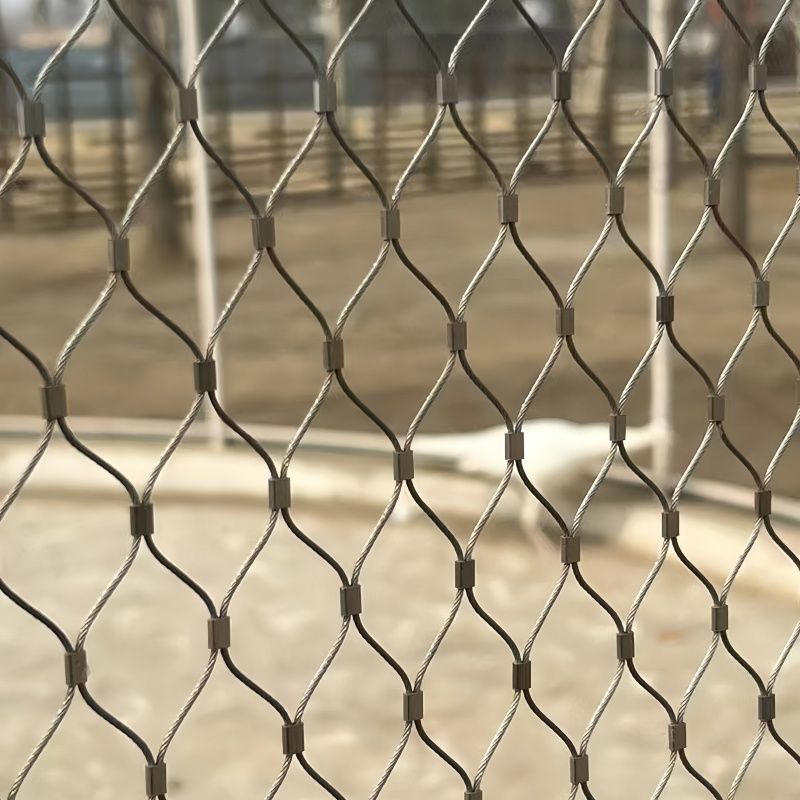

Stainless Steel Ferrule Rope Mesh Border Connection Options

Stainless Steel Ferrule Rope Mesh Border Connection Options

Stainless Steel Ferrule Rope Mesh Border Connection Options

Brand Name: HUIHAO KASITE
Model Number: HH-SSFR
MOQ: 1 M2 stainless steel ferrule rope mesh
Price: USD14-USD28 /M2 OF stainless steel ferrule rope mesh
Payment Terms: T/T,L/C
Supply Ability: 6000 M2 PER MONTH
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
ISO9001-2015
Name:
Ferrule Rope Mesh
Thickness:
1.2–2 Mm, Customizable
Customization:
Customizable Logo, Pattern Splicing
Ferrule Type:
Both Ferrule And Opened Ferrule Available
Opening Angle:
60 Degree
Material:
Made From Premium 316L/304 Stainless Steel
Packaging Details:
WOODEN CASE IN COMMON FOR EXPORTING
Supply Ability:
6000 M2 PER MONTH
Highlight:

stainless steel rope mesh

,

ferrule rope mesh border

,

wire rope mesh connection

Product Description
Stainless Steel Ferrule Rope Mesh Border Connection Options
Stainless Steel Ferrule Rope Mesh - Mesh Diamond Dimension
The mesh details under the stretching angle is 60 degrees.
MESH DIAMOND WIDTH (MM) Rope size MESH DIAMOND HEIGHT (MM) KG/M2
187*19332.12
207*19361.96
227*19391.85
257*7451.44
307*7531.12
357*7620.91
407*7710.76
507*7880.57
607*71040.46
707*71220.38
807*71400.32
1007*71740.25
1207*72080.2
1407*72420.17
1607*72770.15
1807*73120.13
2007*73460.12
Border Connection Options for Stainless Steel Ferrule Rope Mesh
  • A. LOOP WITHOUT LOOSE FERRULE
  • B. LOOP WITH LOOSE FERRULE
  • C. OPEN END
  • E. X-TEND EYELET
Stainless Steel Ferrule Rope Mesh Border Connection Options 0

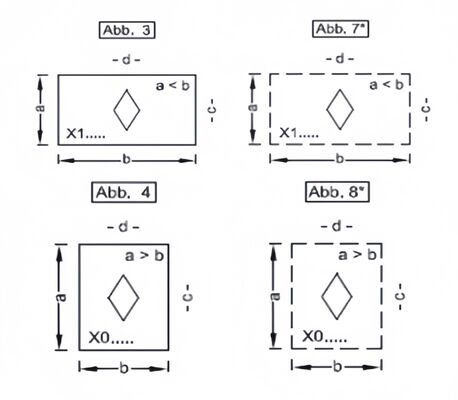

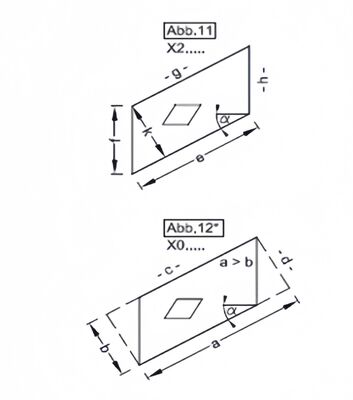

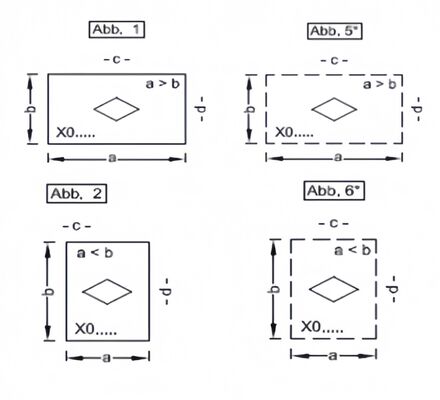

Stainless Steel Ferrule Rope Mesh - Standard Design for Frame Connections
Usually, we determine the stretching direction of the ferrule rope mesh when connecting to the frame based on the length and width of each individual panel. We also provide customization according to the specific requirements of our clients.
Stainless Steel Ferrule Rope Mesh Border Connection Options 1

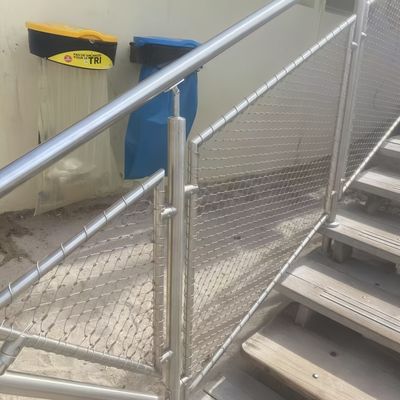

Option for Increased Safety
Put additional connecting ferrules every 30 - 50 cm to secure the installation cable.
Notice: Before additional ferrules are pressed flat, the installation cable first has to be fixed by the regular ferrule.
Stainless Steel Ferrule Rope Mesh Border Connection Options 2
Stainless Steel Ferrule Rope Mesh Main Advantages
  • High tensile strength with light weight
  • Safe and environmental protection, close to nature
  • Good resistance for weather and corrosion
  • High transparency and good invisible effect
  • Large mesh span for huge surface installation
  • The structure is strong and durable, with a service life of more than 30 years
  • Various graphics and structures can be designed arbitrarily
  • Easy to install, can be constructed on any structure
