Huihao Design Wire Rope Mesh Fencing Frame System

Brand Name:	HUIHAO KASITE
Model Number:	HH-SS-RF
MOQ:	1SQAURE METER
Price:	USD20-USD40 PER SHEET FOR ROPE MESH FENCING
Payment Terms:	T/T
Supply Ability:	6000 SHEETS PER 30 DAYS

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO9001-2015

Name:

Wire Rope Mesh Fencing

Frame Type:

Round, Rectangular And Slotted Rectangular Frame

Feature:

Easy Installation

Material:

AISI 316 Stainless Steel

Mesh Diamond Direction:

Horizontal And Vertical

Rope Diameter:

1.5mm, 2mm And 3mm

Packaging Details:

WOODEN CASE OR PALLET FOR ROPE MESH FENCING

Supply Ability:

6000 SHEETS PER 30 DAYS

Highlight:

wire rope mesh fencing system

design wire rope mesh frame

huihao wire rope mesh fencing

Product Description

Huihao Design Wire Rope Mesh Fencing Frame System

Frame Systems serve multiple purposes such as balustrade infills, fall protection, interior decoration, and support for greenery applications. Preassembled for elegance and high performance, these frames are easily installed on-site.

Frames are customizable with different-sized round tubes, square profiles, and rectangular or round slotted tubes. Round tube frames offer flexibility in shapes and radii, while square profiles and slotted tubes cater to various sizes as rectangles or parallelograms based on project needs.

The mesh diamonds' direction can be either vertical or horizontal, adapting to different applications. Frames can be produced from AISI 304, duplex, galvanized or painted steel, besides AISI 316 stainless steel as the standard option.

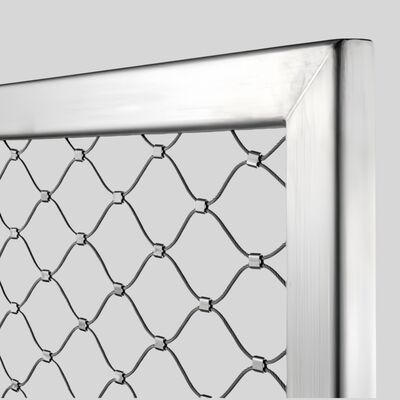

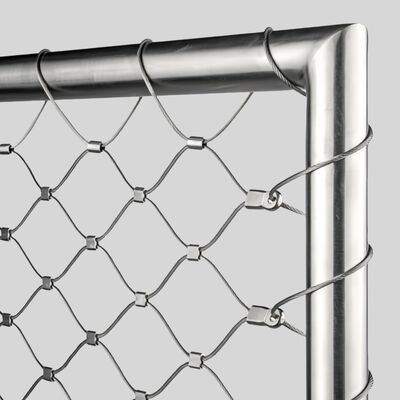

Frame Systems for Rope Mesh Fencing

Frame system type	Tube dimensions	Rope mesh opening	Mesh Diamond Direction
Round frame system	Ø21.3mm, Ø26.9mm, Ø33.7mm, Ø42.4mm in standard. Special diameters available per project requirements.	Rope diameter: 1.5mm, 2mm, 3mm Balustrade Systems: 25-80mm Safety Net Systems: 80-120mm Greenery Systems: 120-180mm	Horizontal and Vertical
Rectangular Frame System	20x20mm, 25x25mm and 30x30mm. Special diameters available per project requirements.	Rope diameter: 1.5mm, 2mm, 3mm Balustrade Systems: 25-80mm Safety Net Systems: 80-120mm Greenery Systems: 120-180mm	Horizontal and Vertical
Slotted rectangular frame system	30x20x1.5mm	Rope diameter: 1.5mm Balustrade Systems: 25-80mm	Horizontal and Vertical

Features of Wire Rope Mesh Fencing

Easy installation
Reduced installation time on site
Highly customisable
Durable and secure
Various colors
Transparent and stylish
Wide range of application fields
