6 Meters Length Wire Rope Flexible Stainless Steel Cable Mesh For Siding Cladding

6 Meters Length Wire Rope Flexible Stainless Steel Cable Mesh For Siding Cladding

Brand Name:	HUIHAOKASITE
Model Number:	HH-SRM-6
MOQ:	1square meters
Price:	USD14-USD28 Per sqaure meter
Payment Terms:	T/T
Supply Ability:	60000m2 cable mesh within 30 days

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO9001-2015

Name:

Flexible Stainless Steel Cable Mesh

Application:

Siding Cladding

Rope Diameter:

1.2mm-3.2mm

Our Services:

Frame Design And Installtion Deisgn And Corner Fixings

Mesh Length:

6000 Mm

Maximum Opening Angle:

70–75°.

Packaging Details:

rolls + carton+ pallet or according to your requests

Supply Ability:

60000m2 cable mesh within 30 days

Highlight:

6 meter stainless steel wire rope mesh

flexible cable mesh for siding

stainless steel cladding wire mesh

Product Description

6 Meters Length Wire Rope Flexible Stainless Steel Cable Mesh For Siding Cladding

Our cable mesh and rope systems are flexible and suitable for a wide variety of applications. They can be used in both new and existing construction. We are proud to offer industry safety solutions for falling protection and more. Popular applications include parking garage safety, safety mesh, and railings.

Features of Flexible Stainless Steel Cable Mesh

Code compliant and climb-resistant
Install on any guardrail system
Exact field measurements not required
Simplified field installation and adjustment
100% AISI 304 / 316 stainless steel

Installation of Flexible Stainless Steel Cable Mesh

The cable mesh is supplied with the necessary mounting aids including sufficient ty-raps, connection clamps and lacing cable.

Eyelet terminals, screwed to the frame's corner
Fork terminals attached to fixing bracket, field installed
External thread terminal through fixing bracket, field installed
Eyelet terminal and external thread through fixing bracket, field installed
Corner detail with cylindrical rope guiding element
Rope pulley block for flexible stainless steel cable mesh
Corner detail with shackle
Corner detail with fork head rope guiding element

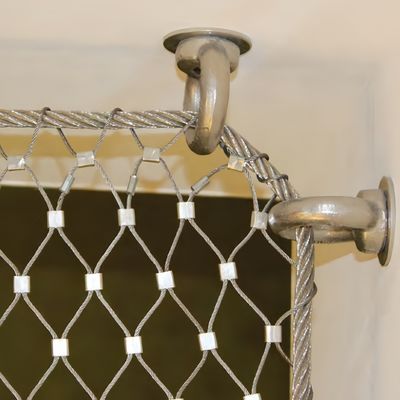

Corner detail with eye nut for cable mesh

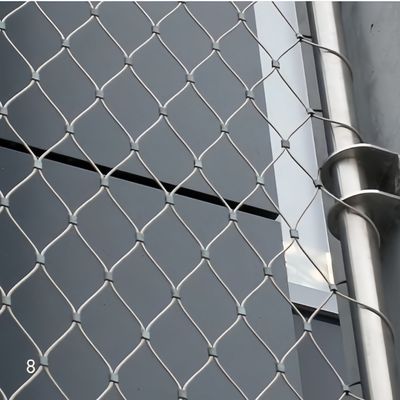

Border cable guidance through cylindrical rope guiding element
Border cable guided by fixing bracket, field installed
External thread through fork terminal and fixing bracket, field installed

Specification of Flexible Stainless Steel Cable Mesh

Item No.s	Cable Diameter	Mesh Opening Size (W×H)
HH-32120F	1/8 inch (3.2 mm)	4.75 x 8.23 inch (120 x 207.8 mm)
HH-32102F	1/8 inch (3.2 mm)	4 x 6.9 inch (102 x 176.7 mm)
HH-3290F	1/8 inch (3.2 mm)	3.55 x 6.15 inch (90 x 156 mm)
HH-3276F	1/8 inch (3.2 mm)	3 x 5.2 inch (76 x 131.6 mm)
HH-3251F	1/8 inch (3.2 mm)	2 x 3.46 inch (51 x 88.3 mm)
HH-24102F	3/32 inch (2.4 mm)	4 x 6.9 inch (102 x 176.7 mm)
HH-2490F	3/32 inch (2.4 mm)	3.55 x 6.15 inch (90 x 156 mm)
HH-2476F	3/32 inch (2.4 mm)	3 x 5.2 inch (76 x 131.6 mm)
HH-2460F	3/32 inch (2.4 mm)	2.4 x 4.16 inch (60 x 104 mm)
HH-2451F	3/32 inch (2.4 mm)	2 x 3.46 inch (51 x 88.3 mm)
HH-2076F	5/64 inch (2.0 mm)	3 x 5.2 inch (76 x 131.6 mm)
HH-2060F	5/64 inch (2.0 mm)	2.4 x 4.16 inch (60 x 104 mm)
HH-2051F	5/64 inch (2.0 mm)	2 x 3.46 inch (51 x 88.3 mm)
HH-2038F	5/64 inch (2.0 mm)	1-1/2 x 2.6 inch (38 x 65.8 mm)
HH-1676F	1/16 inch (1.6 mm)	1.2 x 2.08 inch (76 x 131.6 mm)
HH-1651F	1/16 inch (1.6 mm)	2 x 3.46 inch (51 x 88.3 mm)
HH-1638F	1/16 inch (1.6 mm)	1-1/2 x 2.6 inch (38 x 65.8 mm)
HH-1630F	1/16 inch (1.6 mm)	1.2 x 2.08 inch (30 x 52 mm)
HH-1625F	1/16 inch (1.6 mm)	1 x 1.73 inch (25.4 x 44 mm)
HH-1238F	3/64 inch (1.2 mm)	1-1/2 x 2.6 inch (38 x 65.8 mm)
HH-1230F	3/64 inch (1.2 mm)	1.2 x 2.08 inch (30 x 52 mm)
HH-1225F	3/64 inch (1.2 mm)	1 x 1.73 inch (25.4 x 44 mm)
HH-1220F	3/64 inch (1.2 mm)	4/5 x 1.39 inch (20 x 34.6 mm)
