Wire Rope Stainless Steel Ferrule Mesh For Railing Refurbishment

Wire Rope Stainless Steel Ferrule Mesh For Railing Refurbishment

Brand Name:	huihaokasite
Model Number:	HH-RF-MESH
MOQ:	10 square meters
Price:	USD14-USD28 / M2
Payment Terms:	T/T
Supply Ability:	60000 SQUARE METERS PER 30 DAYS

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO9001-2015

Name:

Stainless Steel Ferrule Mesh

Material:

Stainless Steel Wire Rope

Application:

Railing Refurbishment

Mesh Max Length:

6000 Mm

Mesh Max Height:

2500 Mm

Featurers:

Flexible, Strength And Light Weight

Packaging Details:

ROLL+CARTON+ PALLET

Supply Ability:

60000 SQUARE METERS PER 30 DAYS

Highlight:

stainless steel wire rope mesh

ferrule mesh for railing refurbishment

wire rope railing mesh with ferrule

Product Description

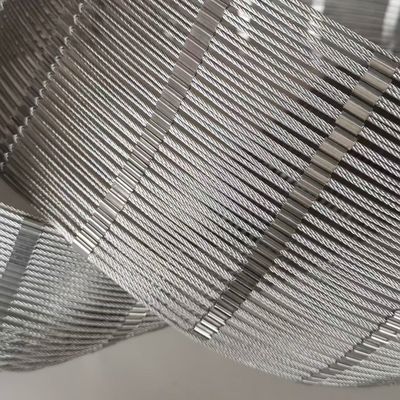

Wire Rope Stainless Steel Ferrule Mesh For Railing Refurbishment

Stainless steel ferrule mesh is perfect for lightweight architecture. The stainless steel cable mesh opens up a whole new world of spatial design options using cables. The intelligent combination of stainless steel cables and ferrules is the key to a wide range of geometries for engineered cable mesh constructions. The opposing curvature of the cables permits light, transparent structures possessing extremely high load capacity and long spans in relation to the low weight of the ferrule mesh material.

Quick Details of Stainless Steel Ferrule Mesh

Material: Stainless steel 304/316/316L
Rope diameter: 1.2mm-3.2mm in common
Open area: 20mm×35mm - 120mm×208mm
Max length: 6000mm
Max height: 2500mm
Application: Balustrading, Fall protection, Fencing, Trellis mesh for small-size greenery, Decoration, Separation, Shopfitting, Siding, Cladding, Railing refurbishment

Specification of Stainless Steel Ferrule Mesh

Item No.s	Cable Diameter	Mesh Opening Size (W×H)
HH-32120F	1/8 inch (3.2 mm)	4.75 x 8.23 inch (120 x 207.8 mm)
HH-32102F	1/8 inch (3.2 mm)	4 x 6.9 inch (102 x 176.7 mm)
HH-3290F	1/8 inch (3.2 mm)	3.55 x 6.15 inch (90 x 156 mm)
HH-3276F	1/8 inch (3.2 mm)	3 x 5.2 inch (76 x 131.6 mm)
HH-3251F	1/8 inch (3.2 mm)	2 x 3.46 inch (51 x 88.3 mm)
HH-24102F	3/32 inch (2.4 mm)	4 x 6.9 inch (102 x 176.7 mm)
HH-2490F	3/32 inch (2.4 mm)	3.55 x 6.15 inch (90 x 156 mm)
HH-2476F	3/32 inch (2.4 mm)	3 x 5.2 inch (76 x 131.6 mm)
HH-2460F	3/32 inch (2.4 mm)	2.4 x 4.16 inch (60 x 104 mm)
HH-2451F	3/32 inch (2.4 mm)	2 x 3.46 inch (51 x 88.3 mm)
HH-2076F	5/64 inch (2.0 mm)	3 x 5.2 inch (76 x 131.6 mm)
HH-2060F	5/64 inch (2.0 mm)	2.4 x 4.16 inch (60 x 104 mm)
HH-2051F	5/64 inch (2.0 mm)	2 x 3.46 inch (51 x 88.3 mm)
HH-2038F	5/64 inch (2.0 mm)	1-1/2 x 2.6 inch (38 x 65.8 mm)
HH-1676F	1/16 inch (1.6 mm)	1.2 x 2.08 inch (76 x 131.6 mm)
HH-1651F	1/16 inch (1.6 mm)	2 x 3.46 inch (51 x 88.3 mm)
HH-1638F	1/16 inch (1.6 mm)	1-1/2 x 2.6 inch (38 x 65.8 mm)
HH-1630F	1/16 inch (1.6 mm)	1.2 x 2.08 inch (30 x 52 mm)
HH-1625F	1/16 inch (1.6 mm)	1 x 1.73 inch (25.4 x 44 mm)
HH-1238F	3/64 inch (1.2 mm)	1-1/2 x 2.6 inch (38 x 65.8 mm)
HH-1230F	3/64 inch (1.2 mm)	1.2 x 2.08 inch (30 x 52 mm)
HH-1225F	3/64 inch (1.2 mm)	1 x 1.73 inch (25.4 x 44 mm)
HH-1220F	3/64 inch (1.2 mm)	4/5 x 1.39 inch (20 x 34.6 mm)

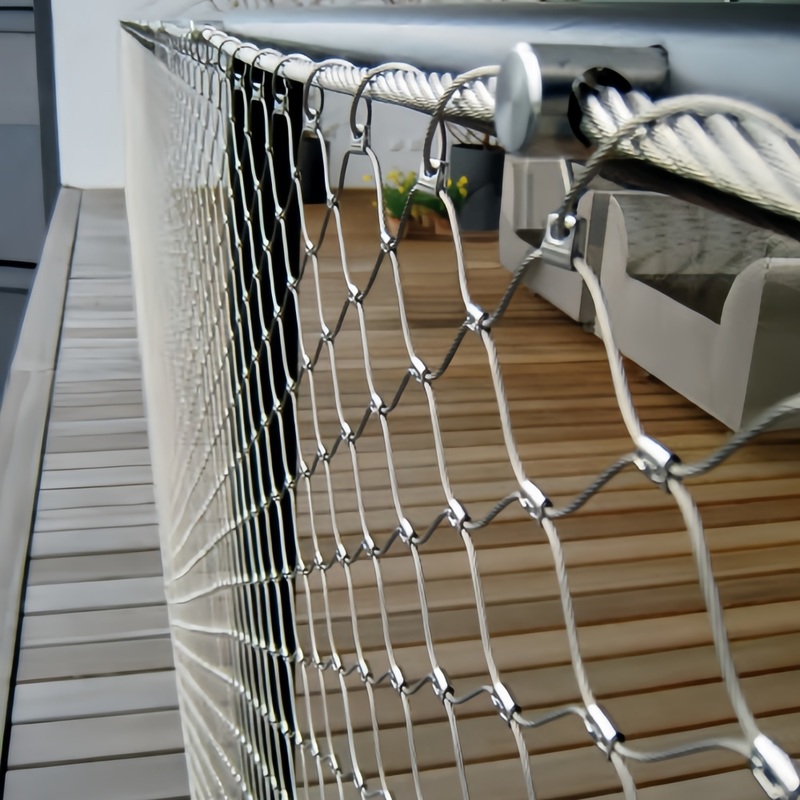

Installation Parts for Stainless Steel Ferrule Mesh

Installation Design According to Application of Ferrule Mesh

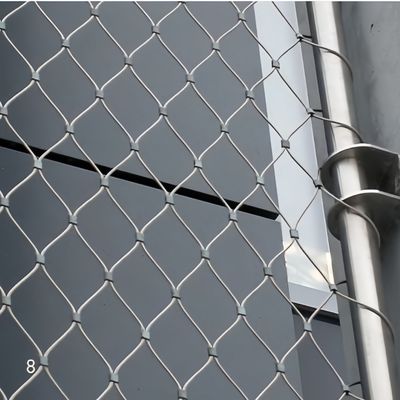

Staircase, handrail attached to vertical cable with screw-on cross clamp
Combination of mesh and ropes (protection against climbing)
Step-down protection, rod with fork head fixation
Step-down protection, cable guiding fork head
Redirectioning of border cable with cylindrical rope guiding element
Helicopter landing pad, corner with 2 cables
Redirectioning of border cable with screw-on cross clamps and vertical cables
Border cable redirectioning, with welded saddle by steelworker
Cable connection, eye-eye
Cable connection, adjustable screw-on cross clamp
Border cable fixation, intermediate cables at building corner
