Stainless Steel Knotted Cable Mesh Fence for Balustrade Infill

Name: Stainless Steel Knotted Cable Mesh Fence for Balustrade Infill
Brand: Anping County Huihao Wire Mesh Manufacture Co., Ltd
SKU: Stainless Steel Cable Mesh Fence
Price: 5.00 USD
Availability: InStock

Brand Name:	HUIHAO CUSTOM
Model Number:	Stainless Steel Cable Mesh Fence
MOQ:	10 square meters
Price:	USD8-26/M2
Payment Terms:	T/T,Western Union,MoneyGram
Supply Ability:	30000 square meters per 10 days

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO9001-2015

Name:

Stainless Steel Cable Mesh Fence

Material:

Stainless Steel 304/316/316L

Type:

Knotted

Cable Diameter:

1.2mm, 1.5mm, 2.0mm,2.5mm, 3.0mm, 4.0mm

Hope Type:

Diamond

Cable Structure:

7 × 19 (3 Mm, 4 Mm) Customized

Mesh Orientation:

Horizontal , Vertical

Diamond Size:

20MM-200MM

Frame System:

Customized According To Your Need

Application:

Zoo Mesh, Animal Enclosure, Bird Aviary, Handrail Infills, Anti-falling Safety Net, Garden Fence

Packaging Details:

rolls with plastic film, then put into wooden case

Supply Ability:

30000 square meters per 10 days

Highlight:

stainless steel knotted cable mesh

wire rope mesh balustrade infill

knotted cable fence for balustrade

Product Description

Knotted Stainless Steel Cable Mesh Fence For Balustrade Infill System

Product Specifications

Name	Stainless Steel Cable Mesh Fence
Material	Stainless Steel 304/316/316L
Type	Knotted
Cable Diameter	1.2mm, 1.5mm, 2.0mm, 2.5mm, 3.0mm, 4.0mm
Hole Type	Diamond
Cable Structure	7 × 19 (3 mm, 4 mm) Customized
Mesh Orientation	Horizontal, Vertical
Diamond size	20MM-200MM
Frame System	Customized according to your need
Application	zoo mesh, animal enclosure, bird aviary, handrail infills, anti-falling safety net, garden fence

Product Description

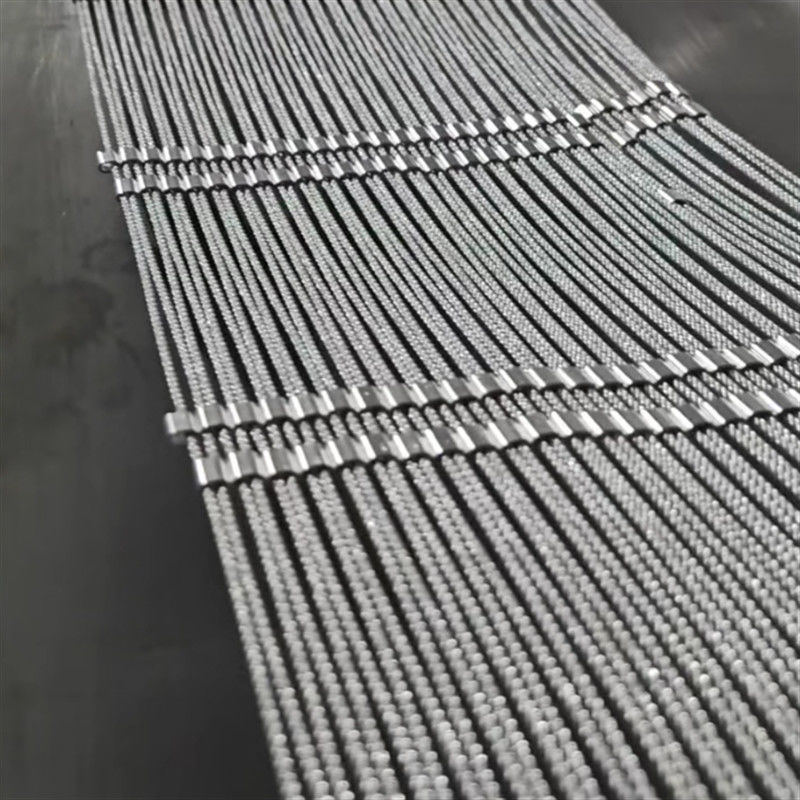

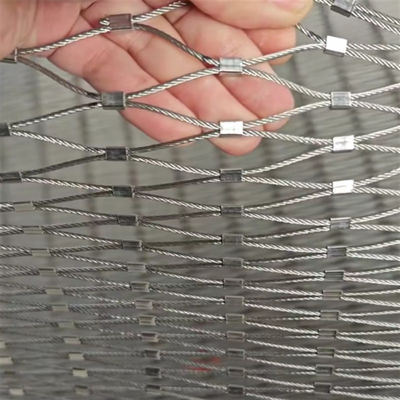

Flexible stainless steel cable mesh is a hand-woven mesh made of high-quality stainless steel cables. There are two primary connection methods for adjacent ropes to form diamond mesh patterns: knotted rope mesh and ferrule rope mesh. The knotted version creates secure knots by interweaving parallel ropes twice, while the ferrule type uses metal ferrules to fix parallel cables without crossing.

Key Features: Light weight, excellent flexibility, high strength, good transparency, and durability exceeding 30 years service life.

Technical Specifications

Type	Knotted Cable Mesh	Ferrule Cable Mesh
Feature	Quality material, High flexibility, Anti-corrosion, Longevity, Cost effectiveness, Easy installation
Advantages	Never rust, strong weather resistance, 30+ year lifespan Soft, flexible and elastic construction Lightweight yet stable Excellent visibility through mesh Ecologically friendly materials Attractive modern appearance
Combination	Inter-woven	Seamless ferrule
Hole pattern	90 degree diamond hole	60 degree diamond hole
Material	SS304, 316, 316L
Diamond size	20 ~ 200 mm
Cable diameter	1 ~ 4 mm
Cable structure	7 × 7 (1.5 mm, 2 mm or 2.5 mm), 7 × 19 (3 mm, 4 mm)

Performance Specifications

Ferrule Type (7 × 7 Construction)

Mesh Aperture (mm)	Wire Rope Diameter (mm)	Minimum Breaking Load (kN)
25x40	1.0	0.6

Knotted Type (7 × 7 Construction)

Mesh Aperture (mm)	Wire Rope Diameter (mm)	Minimum Breaking Load (kN)
25x25	1.2	0.8

7 × 19 Construction Wire Rope

Mesh Aperture (mm)	Wire Rope Diameter (mm)	Minimum Breaking Load (kN)
150x260	3.2	7.38

Packaging & Delivery

Rolls wrapped in plastic film, packed in wooden cases
Framed mesh panels packed in wooden cases
Custom packaging available upon request
