PVC Coated Ferrule Type Stainless Steel Cable Mesh 7x7

PVC Coated Ferrule Type Stainless Steel Cable Mesh 7x7

Model Number:	HH-1.5mm
MOQ:	10 square meters
Price:	USD8-26/M2
Payment Terms:	T/T,Western Union,MoneyGram
Supply Ability:	30000 square meters per 10 days

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO9001-2015

Name:

Ferrule Wire Rope Mesh

Material:

Stainless Steel 304/316/316L

Wire Diameter:

1mm-6mm

Mesh Size:

20mm-200mm

Surface Treatment:

Silver Or Black Oxide Finish

Cover:

PVC Coated

Mesh Direction:

Horizontal , Vertical

Construction Of Wire Cable:

7x7, 7x19

Customized:

Frame System Design

Usage:

Safety Net，Balcony Stair Fence

Packaging Details:

rolls with plastic film, then put into wooden case

Supply Ability:

30000 square meters per 10 days

Highlight:

7x7 stainless steel cable mesh

Ferrule stainless steel cable mesh

PVC Coated rope mesh

Product Description

PVC Coated Ferrule Type Stainless Steel Cable Mesh 7x7

Product Specifications

Attribute	Value
Name	Ferrule wire rope mesh
Material	Stainless steel 304/316/316L
Wire Diameter	1mm-6mm
Mesh Size	20mm-200mm
Surface Treatment	Silver or black oxide finish
Cover	PVC coated
Mesh Direction	Horizontal, Vertical
Construction Of Wire Cable	7x7, 7x19
Customization	Frame System Design
Usage	Safety Net, Balcony Stair Fence

Product Overview

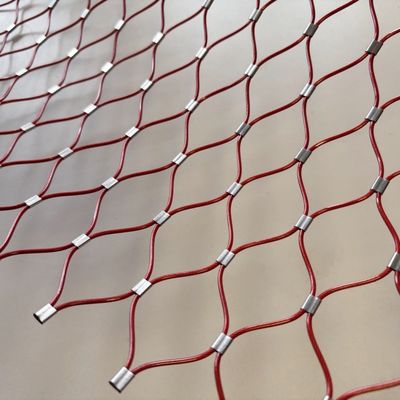

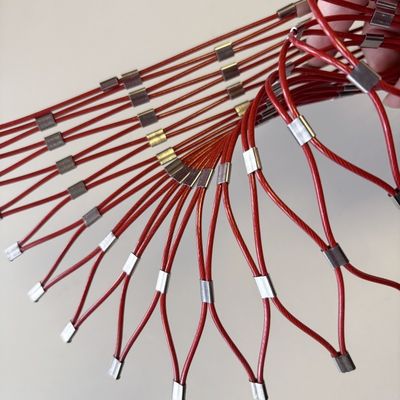

PVC coated ferrule type wire rope net combines stainless steel cables with durable ferrules made of matching grade stainless steel. This construction offers excellent physical properties while maintaining a clean, professional appearance.

Key Features

Material options: Stainless steel 304, 304L, 316, 316L
Ferrule material: Tinned copper, nickel plated copper, or stainless steel
Surface treatment: Silver or black oxide finish
Wire cable construction: 7×7 or 7×19
Cable diameter range: 1.0-5.0 mm
Mesh opening sizes: 20-200 mm
Standard mesh opening angle: 60° (custom angles available)
Connection method: Ferrule or knotted
Certification: EN1263-1 compliant for static and dynamic load capacity

Product Visuals

Technical Specifications

Cable Diameter (inch)	Cable Diameter (mm)	Mesh Opening Size (inch)	Mesh Opening Size (mm)
1/8	3.2	2 x 3.46	51 x 88.3
3/32	2.4	2 x 3.46	51 x 88.3
5/64	2.0	2.4 x 4.16	60 x 104
5/64	2.0	2 x 3.46	51 x 88.3
5/64	2.0	1-1/2 x 2.6	38 x 65.8
1/16	1.6	2 x 3.46	51 x 88.3
1/16	1.6	1-1/2 x 2.6	38 x 65.8
1/16	1.6	1.2 x 2.08	30 x 52
1/16	1.6	1 x 1.73	25.4 x 44

Product Variations

Applications

Stainless steel cable mesh is primarily used in construction for wild zoos, large animal enclosures, aviaries, garden green walls, and as handrail infill or safety mesh. The ferrule type offers superior aesthetic appeal and is ideal for architectural applications requiring both decorative and protective functions.

Key Advantages

High tensile strength with light weight
Environmentally safe and natural appearance
Excellent weather and corrosion resistance
High transparency with good invisible effect
Large mesh span suitable for extensive surface installations
Durable structure with over 30 years service life
Flexible design options for various graphics and structures
Easy installation on any supporting structure

Packaging Options

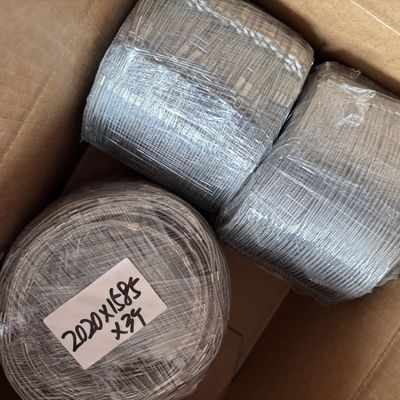

Standard Packaging: Rope mesh without frame is packed in rolls with protective plastic film, then placed in wooden cases. Framed rope mesh is securely fastened on pallets for safe transportation.
