7 × 19 Construction Safety Stainless Steel Rope Net Size Customized

Name: 7 × 19 Construction Safety Stainless Steel Rope Net Size Customized
Brand: Anping County Huihao Wire Mesh Manufacture Co., Ltd
SKU: Stainless Steel Rope Mesh
Price: 5.00 USD
Availability: InStock

Brand Name:	HUIHAO CUSTOM
Model Number:	Stainless Steel Rope Mesh
MOQ:	10 square meters
Price:	USD8-26/M2
Payment Terms:	T/T,Western Union,MoneyGram
Supply Ability:	30000 square meters per 10 days

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO9001-2015

Name:

Stainless Steel Rope Mesh

Material:

Stainless Steel 304/316/316L

Type:

Knotted And Ferrule Type

Cable Diameter:

1-4mm

Hope Type:

Diamond

Cable Structure:

7 × 7 (1.5 Mm, 2 Mm Or 2.5 Mm), 7 × 19 (3 Mm, 4 Mm)

Mesh Orientation:

Horizontal , Vertical

Diamond Size:

20MM-200MM

Frame System:

Customized According To Your Need

Application:

Zoo Mesh, Animal Enclosure, Bird Aviary, Handrail Infills, Anti-falling Safety Net, Garden Fence

Packaging Details:

rolls with plastic film, then put into wooden case

Supply Ability:

30000 square meters per 10 days

Highlight:

7 × 19 wire rope net

customized stainless steel rope net

7 × 19 stainless steel rope net

Product Description

Construction Safety Net Used Stainless Steel Rope Mesh Size Customized

Description Of Stainless Steel Rope Mesh:

Made from high quality stainless steel wire ropes, stainless steel rope mesh is lightweight, flexible, transparent, durable, solid, and long-lasting.

All stainless steel rope meshes are manufactured to ISO 9001 standards.

Stainless steel rope mesh has been widely used as balustrade infill system, zoo enclosures, tensile facade, safety netting and green wall systems in interior and exterior applications.

Material: stainless steel 304, 304L, 316, 316L.
Ferrule material: tinned copper, nickel plated copper, stainless steel.
Surface treatment: silver or black oxide finish.
Construction of wire cable: 7 × 7, 7 × 19.
Cable diameter: 1.0–5.0 mm.
Mesh opening sizes: 20–200 mm.
Mesh opening angles: 20 , 30 , 60 , 70 , 75 .
Connection: ferrule or knotted.
Certification: certified to EN1263-1 for static and dynamic load capacity

Specification Of Stainless Steel Rope Mesh:


Type	Knotted cable mesh	Ferrule cable mesh
Feature	Quality material, High flexibility, Anti-corrosion,Longevity, Cost effectiveness, Easy
Advantages	1.Never rust, strong weather resistance, and a service life of up to 30 years 2.Soft, flexible and elastic 3.Lightweight and stable 4.Good perspective 5.Ecological, healthy and environmentally friendly 6.Beautiful appearance
Combination	Inter-woven	Seamless ferrule
Hole pattern	90 degree diamond hole	60 degree diamond hole
Material	SS304, 316, 316L, etc
Diamond size	20 ~ 200 mm
Cable diameter	1 ~ 4 mm
Cable structure	7 × 7 (1.5 mm, 2 mm or 2.5 mm), 7 × 19 (3 mm, 4 mm)
Cable structure

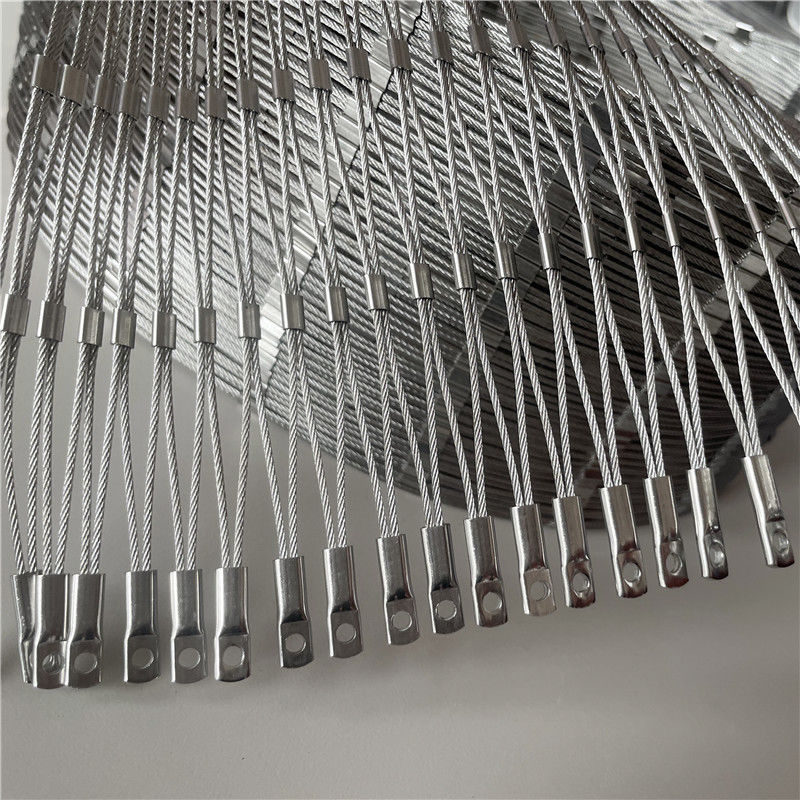

**Stainless Steel Rope Mesh (Ferrule Type), 7 × 7 Construction Wire Rope**
Mesh Aperture Width × Height (mm)	Wire Rope Diameter (mm)	Minimum Breaking Load (kN)
25x40	1.0	0.6
25x40	1.6	1.5
30x50	1.0	0.6
30x50	1.6	1.5
35x60	1.0	0.6
	1.6	1.5
	2.0	2.5
40x70	1.0	0.6
	1.6	1.5
	2.0	2.5
50x88	1.0	0.6
	1.6	1.5
	2.0	2.5
	3.0	5.7
	4.0	10.1
60x105; 70x120 80x140; 100x175 120x210; 160x275 180x310; 200x345	1.0	0.6
	1.6	1.5
	2.0	2.5
	3.0	5.7
	4.0	10.1
	5.0	15.9

**Stainless Steel Rope Mesh (Knotted), 7 × 7 Construction Wire Rope**
Mesh Aperture Width × Height (mm)	Wire Rope Diameter (mm)	Minimum Breaking Load (kN)
25x25	1.2	0.8
25x25	1.6	1.5
30x30	1.2	0.8
30x30	1.6	1.5
40x40	1.2	0.8
	1.6	1.5
	2	2.5
50x50	1.2	0.8
	1.6	1.5
	2	2.5
60x60	1.2	0.8
	1.6	1.5
	2	2.5
	2.4	3.4
	3	5.7
75x75; 90x90 100x100;120x120	1.2	0.8
	1.6	1.5
	2	2.5
	2.4	3.4
	3	5.7
	4	10.1

**Stainless Steel Rope Mesh, 7 × 19 Construction Wire Rope**
Mesh Aperture Width × Height (mm)	Wire Rope Diameter (mm)	Minimum Breaking Load (kN)
150x260	3.2	7.38
120x208	3.2	7.38
100x173	3.2	7.38
90x156	3.2	7.38

Application Of Stainless Steel Wire Rope Mesh:

Balustrades,
Safety Nets,
Closure Nets,
Facades,
Greenery Installations,
Decorative Designs,

Package & Delivery Of Stainless Steel Rope Mesh:

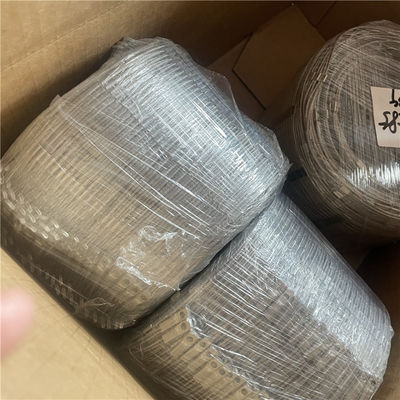

1. Rolls With Plastic Film, Then Put Into Wooden Case

2. Stainless Steel Cable mesh With Frame, Then put Into Wooden Case

3. As your requirement
