7 × 7 Knotted Type Stainless Steel Cable Mesh Fence For Balustrade Infill System

Name: 7 × 7 Knotted Type Stainless Steel Cable Mesh Fence For Balustrade Infill System
Brand: Anping County Huihao Wire Mesh Manufacture Co., Ltd
SKU: Stainless Steel Cable Mesh Fence
Price: 5.00 USD
Availability: InStock

Brand Name:	HUIHAO CUSTOM
Model Number:	Stainless Steel Cable Mesh Fence
MOQ:	10 square meters
Price:	USD8-26/M2
Payment Terms:	T/T,Western Union,MoneyGram
Supply Ability:	30000 square meters per 10 days

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO9001-2015

Name:

Stainless Steel Cable Mesh Fence

Material:

Stainless Steel 304/316/316L

Type:

Inter-Woven Type And Ferrule Type

Cable Diameter:

1.2mm, 1.5mm, 2.0mm,2.5mm, 3.0mm, 4.0mm

Hope Type:

Diamond

Cable Structure:

7 × 7 (1.5 Mm, 2 Mm Or 2.5 Mm), 7 × 19 (3 Mm, 4 Mm)

Mesh Orientation:

Horizontal , Vertical

Diamond Size:

20MM-200MM

Frame System:

Customized According To Your Need

Application:

Zoo Mesh, Animal Enclosure, Bird Aviary, Handrail Infills, Anti-falling Safety Net, Garden Fence

Packaging Details:

rolls with plastic film, then put into wooden case

Supply Ability:

30000 square meters per 10 days

Highlight:

Knotted rope mesh fencing

7 × 7 rope safety netting

Balustrade Infill System rope mesh

Product Description

Knotted Type Stainless Steel Cable Mesh Fence Used For Balustrade Infill System

Description Of Stainless Steel Cable Mesh Fence:

Flexible stainless steel cable mesh is a kind of pure hand woven mesh, which is made of high-quality stainless steel cables.

There are two different ways to connect two adjacent ropes together and form a diamond mesh.

They are stainless steel knotted rope mesh and stainless steel ferrule rope mesh.

Both of them are made up from cables, just their combination methods of cables are different.

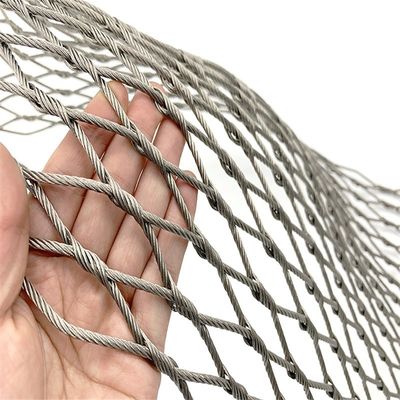

For stainless steel knotted cable mesh, to form the rhombus mesh and ensure the holes never variant, we need to create knots by interweaving two parallel ropes twice.

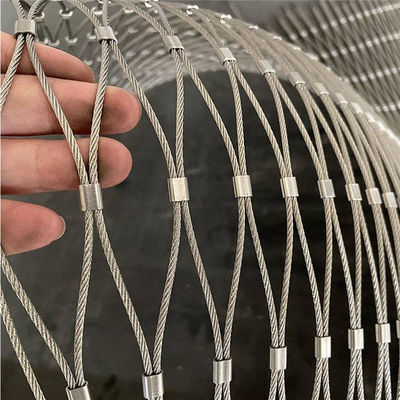

About ferrule type cable mesh, stainless steel cables are neither knotted nor crossed. They will lie parallel in pairs, and then we will use metal ferrules to fix them.
No matter stainless steel knotted wire mesh or cable ferrule mesh, they can ensure the size of the mesh aperture will not change.

Products name: Stainless Steel Cable Mesh Fence

Material: SS 304, 304L, 316, 316L

Features: light weight, good flexibility, high strength, good transparency, good invisibility. The service life is more than 30 years.

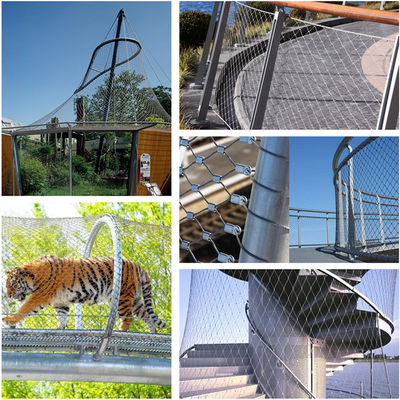

Applications: zoo mesh, animal enclosure, bird aviary, handrail infills, anti-falling safety net, garden fence.

Design and installation: various graphics and structures can be designed, and installation schemes can be provided.

Specification Of Stainless Steel Cable Mesh Fence:

**Stainless Steel Cable Mesh Fence**
Type	Knotted cable mesh	Ferrule cable mesh
Feature	Quality material, High flexibility, Anti-corrosion,Longevity, Cost effectiveness, Easy
Advantages	1.Never rust, strong weather resistance, and a service life of up to 30 years 2.Soft, flexible and elastic 3.Lightweight and stable 4.Good perspective 5.Ecological, healthy and environmentally friendly 6.Beautiful appearance
Combination	Inter-woven	Seamless ferrule
Hole pattern	90 degree diamond hole	60 degree diamond hole
Material	SS304, 316, 316L, etc
Diamond size	20 ~ 200 mm
Cable diameter	1 ~ 4 mm
Cable structure	7 × 7 (1.5 mm, 2 mm or 2.5 mm), 7 × 19 (3 mm, 4 mm)
Cable structure

**Stainless Steel Cable Mesh (Ferrule Type), 7 × 7 Construction Wire Rope**
Mesh Aperture Width × Height (mm)	Wire Rope Diameter (mm)	Minimum Breaking Load (kN)
25x40	1.0	0.6
25x40	1.6	1.5
30x50	1.0	0.6
30x50	1.6	1.5
35x60	1.0	0.6
	1.6	1.5
	2.0	2.5
40x70	1.0	0.6
	1.6	1.5
	2.0	2.5
50x88	1.0	0.6
	1.6	1.5
	2.0	2.5
	3.0	5.7
	4.0	10.1
60x105; 70x120 80x140; 100x175 120x210; 160x275 180x310; 200x345	1.0	0.6
	1.6	1.5
	2.0	2.5
	3.0	5.7
	4.0	10.1
	5.0	15.9

**Stainless Steel Cable Mesh (Knotted), 7 × 7 Construction Wire Rope**
Mesh Aperture Width × Height (mm)	Wire Rope Diameter (mm)	Minimum Breaking Load (kN)
25x25	1.2	0.8
25x25	1.6	1.5
30x30	1.2	0.8
30x30	1.6	1.5
40x40	1.2	0.8
	1.6	1.5
	2	2.5
50x50	1.2	0.8
	1.6	1.5
	2	2.5
60x60	1.2	0.8
	1.6	1.5
	2	2.5
	2.4	3.4
	3	5.7
75x75; 90x90 100x100;120x120	1.2	0.8
	1.6	1.5
	2	2.5
	2.4	3.4
	3	5.7
	4	10.1

**Stainless Steel Cable Mesh, 7 × 19 Construction Wire Rope**
Mesh Aperture Width × Height (mm)	Wire Rope Diameter (mm)	Minimum Breaking Load (kN)
150x260	3.2	7.38
120x208	3.2	7.38
100x173	3.2	7.38
90x156	3.2	7.38

Package & Delivery Of Stainless Steel Wire Rope Mesh:

1. Rolls With Plastic Film, Then Put Into Wooden Case

2. Stainless Steel Cable mesh With Frame, Then put Into Wooden Case

3. As your requirement
