1.5mm Diamond Stainless Steel Wire Rope Mesh Installed Onto Balustrade

Name: 1.5mm Diamond Stainless Steel Wire Rope Mesh Installed Onto Balustrade
Brand: Anping County Huihao Wire Mesh Manufacture Co., Ltd
SKU: Stainless Steel Wire Rope Mesh
Price: 5.00 USD
Availability: InStock

Brand Name:	HUIHAO CUSTOM
Model Number:	Stainless Steel Wire Rope Mesh
MOQ:	10 square meters
Price:	USD8-26/M2
Payment Terms:	T/T,Western Union,MoneyGram
Supply Ability:	30000 square meters per 10 days

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO9001-2015

Name:

Stainless Steel Wire Rope Mesh

Material:

Stainless Steel 304/316/316L

Type:

Inter-Woven Type And Ferrule Type

Cable Diameter:

1.2mm, 1.5mm, 2.0mm,2.5mm, 3.0mm, 4.0mm

Hope Type:

Diamond

Opening:

20MM-152MM

Frame System:

Customized According To Your Need

Application:

Zoo Mesh, Animal Enclosure, Bird Aviary, Handrail Infills, Anti-falling Safety Net, Garden Fence

Packaging Details:

rolls with plastic film, then put into wooden case

Supply Ability:

30000 square meters per 10 days

Highlight:

Diamond wire rope mesh

Balustrade wire rope mesh

1.5mm stainless steel rope mesh

Product Description

Stainless Steel Wire Rope Mesh Installed Onto The Balustrade

Description Of Stainless Steel Wire Rope Mesh:

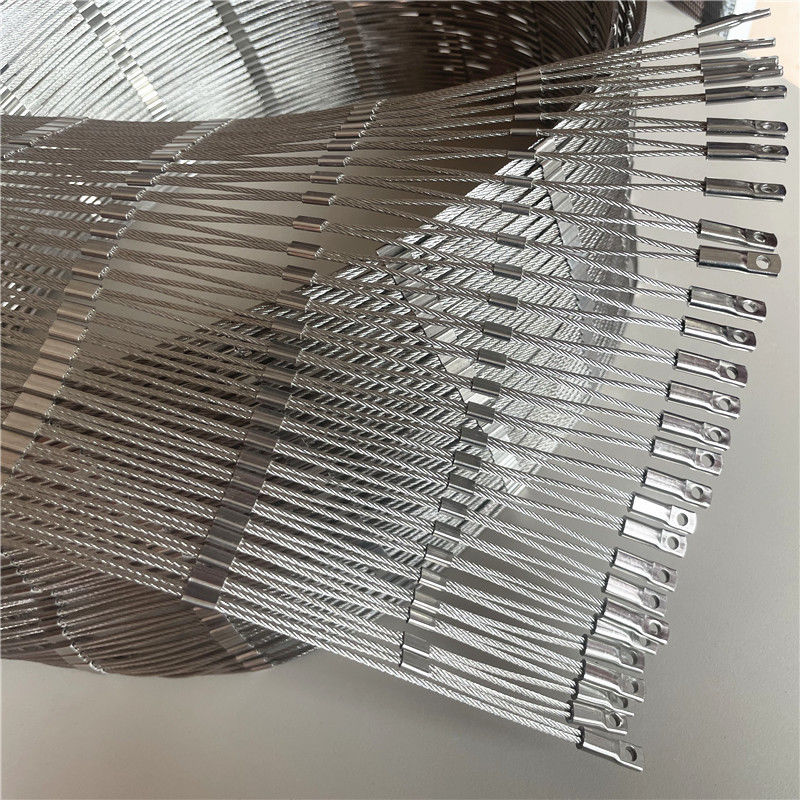

Stainless steel wire rope mesh is also called stainless steel cable mesh, the mainly material is stainless steel cable and stainless steel ferrule.

It is produced by putting the ferrules tough the cable first, and then press the ferrule using special molds.

This kind of mesh has very beautiful appearance, it also has very good strength and flexibility.

We can product various types of stainless steel cable mesh in different cable diameter and mesh opening to meet our clients' requirement.

Products name: Stainless Steel Wire Rope Mesh

Material: High-quality SS 304, 304L, 316, 316L wire ropes and stainless steel ferrules.

Features: light weight, good flexibility, high strength, good transparency, good invisibility. The service life is more than 30 years.

Applications: zoo mesh, animal enclosure, bird aviary, handrail infills, anti-falling safety net, garden fence.

Design and installation: various graphics and structures can be designed, and installation schemes can be provided.

Specification Of Stainless Steel Wire Rope Mesh:

Cable diameter		Mesh opening size		Nominal break
inch	mm	inch	mm	lbs.
1/8	3.2	4x4	102x102	1600
1/8	3.2	3x3	76x76	1600
1/8	3.2	2x2	51x51	1600
3/32	2.4	4x4	102x102	920
3/32	2.4	3x3	76x76	920
3/32	2.4	2x2	51x51	920
5/64	2.0	3x3	76x76	676
5/64	2.0	2x2	51x51	676
5/64	2.0	1-1/2x 1-1/2	38x38	676
1/16	1.6	3x3	76x76	480
1/16	1.6	2x2	51x51	480
1/16	1.6	1-1/2x 1-1/2	38x38	480
1/16	1.6	1x1	25.4x25.4	480
3/64	1.2	1-1/2x 1-1/2	38x38	270
3/64	1.2	1x1	25.4x25.4	270
3/64	1.2	4/5x4/5	20x20	270
Advantages Of Stainless Steel Wire Rope Mesh: 1.Never rust, strong weather resistance, and a service life of up to 30 years 2.Soft, flexible and elastic 3.Lightweight and stable 4.Good perspective 5.Ecological, healthy and environmentally friendly 6.Beautiful appearance

Application Of Stainless Steel Wire Rope Mesh:

Balustrades,
Safety Nets,
Closure Nets,
Facades,
Greenery Installations,
Decorative Designs,

Installation Of Stainless Steel Wire Rope Mesh:

Step 1: Determine the height and width of the steel frame and stainless steel rope mesh

Step 2: Fix the 4 corner of the stainless steel rope mesh onto the steel frame with cable ties.

Step 3: Fix the 4 sides of the stainless steel rope mesh onto the steel frame with cable ties.

Step 4: Make the perimeter rope pass through the ferrules fixed by cable ties and be sure the rope always move in one direction.

Step 5: When the wire ripe is fixed, remove all cable ties for stainless steel rope mesh fixing.

Step 6: Cut off the lose ends of stainless steel rope with a cable cutter.

Package & Delivery Of Stainless Steel Wire Rope Mesh:

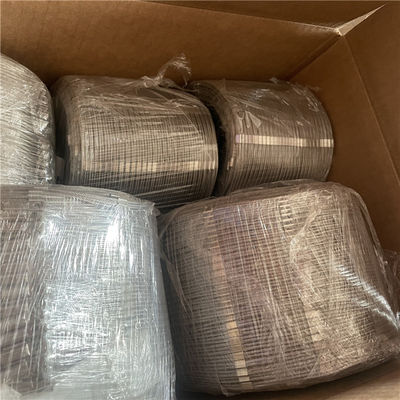

1. Rolls With Plastic Film, Then Put Into Wooden Case

2. Stainless Steel Cable mesh With Frame, Then put Into Wooden Case

3. As your requirement
