Glass Laminated Wire Mesh

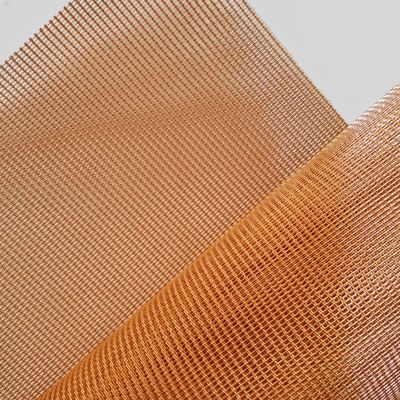

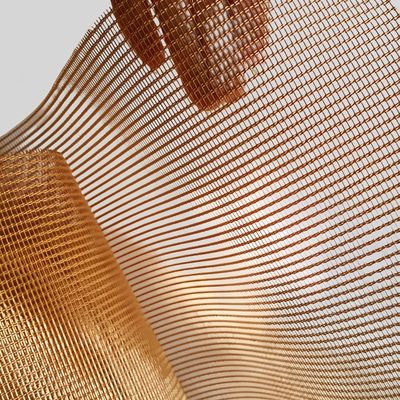

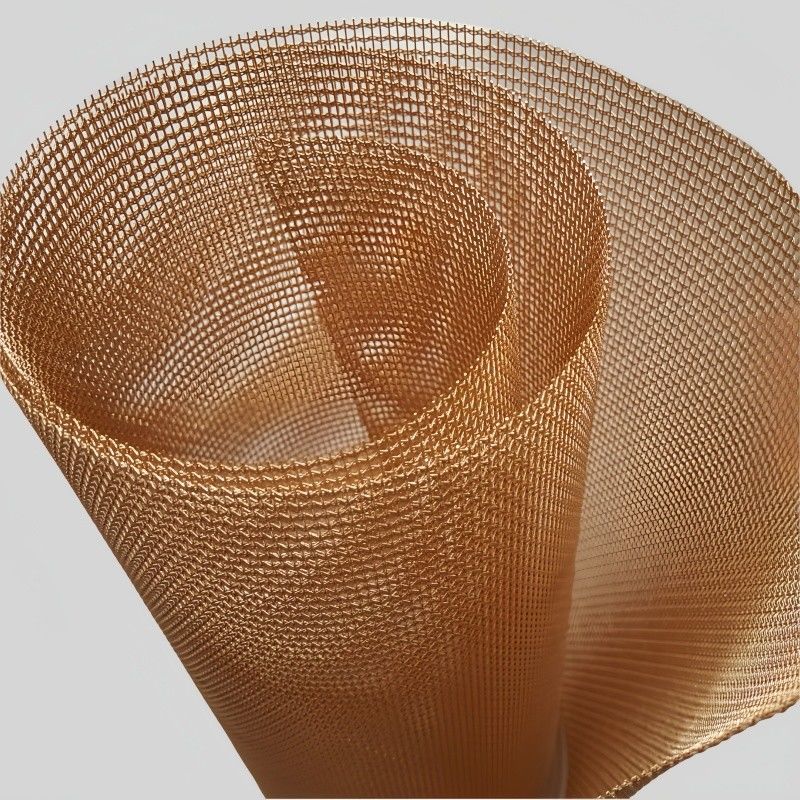

Phosphorized Copper Glass Laminated Wire Mesh 1.5mm For Space Divider

Name: Phosphorized Copper Glass Laminated Wire Mesh 1.5mm For Space Divider
Brand: Anping County Huihao Wire Mesh Manufacture Co., Ltd
SKU: HH-GLMI-23
Availability: InStock

Model Number:	HH-GLMI-23
MOQ:	3 SQAURE METERS MESH
Price:	CONTACT WITH US
Payment Terms:	T/T,Western Union,MoneyGram
Supply Ability:	6000 SQAURE METERS PER 30 DAYS

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001-2015

Name:

Glass Laminated Wire Mesh

Material:

Phosphorized Copper Wire

Wire Diameter:

0.48mm/0.5mm

Mesh Thickness:

1.5mm

Mesh Weight:

2.3kgs/m2

Open Area:

40.5%

Packaging Details:

ROLLS WITH WATERPROOF PAPER

Supply Ability:

6000 SQAURE METERS PER 30 DAYS

Highlight:

glass laminated wire mesh 1.5mm

phosphorized copper glass laminated wire mesh

1.5mm copper wire cloth

Product Description

Glass laminated wire mesh for Space divider

Quick details of Glass laminated wire mesh

Term:HH-GLMI-23

Material: phosphorized copper

Mesh Diameter: 0.48mm & 0.5mm

Mesh Thickness: 1.5mm

Mesh weight: 2.3kgs/m2

Open Area: 40.5%

Mesh Width: 4000mm

Application: for wire mesh space divider

Description of glass laminated wire mesh

Glass laminated wire Mesh Types:woven wire mesh, etc.

Material of wire mesh: stainless steel, copper, brass, phosphor bronze, polyethylene

glass laminated wire mesh Color: natural metal color, or various colors customized, such as blue, gold, etc.

wire mesh Pattern: The pattern can be customized according to customer requirements, such as plant, landscape, figures, etc.

Specification of glass laminated wire mesh

ITEMS	HH-GLMI-23
Material	copper	Opening Area	40.5%
Warp Diameter	0.48mm	Mesh Thickness	1.5mm
Warp Pitch	3.5mm	Surface	colored finished
Weft Diameter	0.5mm	Max Length	30 meters
Weft Pitch	1.6mm	Max Wide	4000mm
Weight	2.3kgs/m2	Application	Interior

Our wire mesh is as metal fabric interlayer can be woven from a variety of metallic fibers, such as stainless steel, copper, brass, bronze, etc. The metal wire can keep its own metallic color, or it can be customized into any color through baked painting after silver plating. We can weave metallic fibers into various patterns, such as landscapes, figures, etc. Metal mesh fabric laminated glass with bright colors and vivid patterns is often used in various interior and exterior decorations, such as partitions, cabinet decorations, and building facade.
