Knitted Wire Mesh
Created with Pixso.

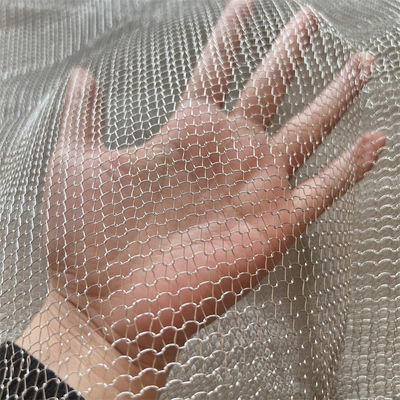

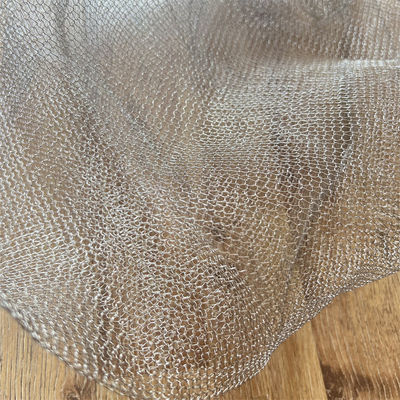

EMI Shielding Knitted Stainless Steel Mesh Roll Width 4″ 6″ 12″18″ 24″30″ OR 42″

Name

EMI Shielding Knitted Stainless Steel Mesh Roll Width 4″ 6″ 12″18″ 24″30″ OR 42″

Model Number: HH-KNW
MOQ: 10 square meters
Price: contact me to get lowest price
Payment Terms: L/C,T/T,Western Union,MoneyGram
Supply Ability: 10000 rolls per 30 days
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
ISO9001-2015
Name:
Wire Knitting Mesh
Material:
304,304L,316,316L,310S,321,2205
Wire Diameter:
0.002″ – 0.030″
HOLE DENSITY:
60
CRIMPING / CORRUGATION:
Up To 30"
Usage:
EMI Shielding
Roll Width:
4″ 6″, 12″, 18″, 24″, 30″, OR 42″
Manufacturer:
Huihao Hardware Mesh
Packaging Details:
roll, carton, wooden case or your requirments
Supply Ability:
10000 rolls per 30 days
Highlight:

shielding knitted stainless steel mesh

,

emi shielding knitted stainless steel mesh

,

emi stainless steel knitted mesh

Product Description



Wire knitting mesh



Description of wire knitting mesh



MATERIAL selection of wire knitting mesh:
Stainless steel – most commonly used in automotive, industrial applications EMI/RF Shielding for excellent corrosion and temperature resistance.
Inconel – High temperature applications, up to 2300 F
Aluminium – for numerous industrial, aerospace and military applications.
Copper – in round or flat wire for welding protection pads, pest control, plastic industry cleaning and nickel filters.

Model
Specification(HG/T21618-1998)
Material
Standard Type(SP)
40-100/60-150/105-300/140-400/160-400/200-570
304,304L,316,316L,310S,321,2205
High-efficiency Type(DP)
60-100/80-100/80-150/90-150/150-300/200-400/300-600
304,304L,316,316L,310S,321,2205
High-penetration Type(HP)
20-100/30-150/70-400/100-600/170-560
304,304L,316,316L,310S,321,2205
Damping type(HR)
33-30/38-40/20-40/26-40/30-40/30-50/48-50/30-60/30-80/50-120
304,304L,316,316L,310S,321,2205

Set 40-100 as an example That is, a 100mm wide gas-liquid filter mesh knitted by 40 pieces or say a 100mm wide gas-liquid mesh with 40 holes.
Standard knitted filter mesh is a widely used model, 40-100,140-400 is more commonly used.

Features:
Superior EMI shielding effectiveness
Excellent corrosion resistance and oil resistance
Used tin-plated copper wire, stainless steel, etc. for wire materials
Used PU sponge, silicone rubber tube, CR sponge, etc. for core materials
Adhesive tape could be attached


Shapes & Sizes

Below are all the standard sizes. Almost any size and combination can be produced.
If you need a size that is not listed below please contact for the options and delivery time.


Specification of wire knitting mesh



WIRE DIAMETER
0.002″ – 0.030″ (MOST COMMON SIZE: .008″, .095″ & .011″
ROLL WIDTHS
1″ – 43” (MOST COMMON: 4″ 6″, 12″, 18″, 24″, 30″, OR 42″)
WEIGHT / DENSITY
0.011” ,0.095”, 0.008”
STAINLESS STEEL
13 LBS/SQFT,18 LBS/SQFT,24 LBS/SQFT
HOLE DENSITY
60 HOLES/INCH
CRIMPING / CORRUGATION
UP TO 30”
