Rock Wool Blanket Wire Mesh In Nickel Chrome 80/20 Knitted Metal Mesh

Rock Wool Blanket Wire Mesh In Nickel Chrome 80/20 Knitted Metal Mesh

Rock Wool Blanket Wire Mesh In Nickel Chrome 80/20 Knitted Metal Mesh

Model Number: HH-KNW
MOQ: 10 square meters
Price: contact me to get lowest price
Payment Terms: L/C,T/T,Western Union,MoneyGram
Supply Ability: 10000 rolls per 30 days
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
ISO9001-2015
Name:
Rock Wool Blanket Wire Mesh
Material:
Nickel Chrome 80/20
Mesh Type:
Knitted Wire Mesh
Working Temperature (°C):
More Than 1250
Wire Dia:
0.203mm, 0.25mm
Factory:
HUIHAO HARDWARE MESH
Packaging Details:
roll, carton, wooden case or your requirments
Supply Ability:
10000 rolls per 30 days
Highlight:

Rock Wool Blanket Wire Mesh

,

Nickel Chrome rockwool wire mesh

,

80/20 rockwool wire mesh

Product Description

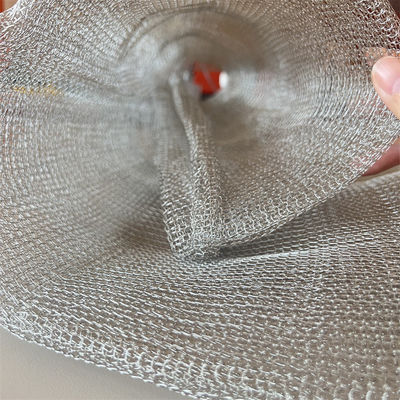

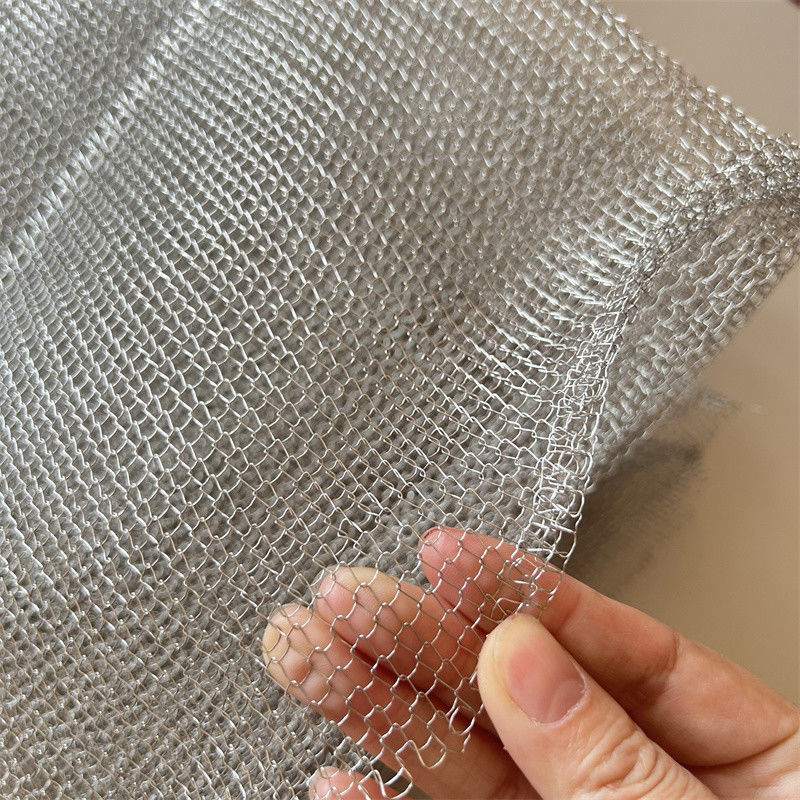

Rock Wool Blanket Wire Mesh



Quick details of Rock Wool Blanket Wire Mesh



Material:Nickel chrome 80/20

Mesh type: knitted wire mesh

Mesh width: 25mm - 1100mm

Wire diameters:0.203mm, 0.25mm in common

Approx. Working Temperature (°C): 1250+

Application: mainly be used in  Power equipment  Industrial furnace Oven, heat treatment equipment ,Petrochemical equipment, oil tank



Technical data of Rock Wool Blanket Wire Mesh



Approx. Working Temperature (°C)  Materials
400 stainless steel 304/316
800 stainless steel321/347
1050 stainless steel310
1050+ inconel601
1250 Nickel Chrome 80/20
1250+ FeCralloy



Wire

Alloy
Temperature

Range °F
Wire

Diameter2
                                  Yield Ft

  Density3                   2/lb.4                   Width5
430 S.S.
Up to 1000
.008"
60
26
1" - 43"
.011"
60
13
1" - 43"
304 S.S.
Up to 1200
.008"
60
24
1" - 43"
.0095"
60
18
1" - 43"
.011"
60
13
1" - 43"
Inconel
Up to 2300
.008"
60
22
1" - 43"
.011"
60
12
1" - 43"



Features of Rock Wool Blanket Wire Mesh



  • Small coefficient of heat conductivity and good capability of heating preservation.
  • Outstanding effect of energy-saving.
  • Excellent fireproof capability. Excellent sound absorption and sound insulation capability.
  • Green thermal insulation materials and no harm for body.
  • Waterproof.
  • The folded rock wool board with certain compression resistance has greater drawing strength, and it does not tend to peel off and has excellent improved durability.



Usage of rock wool blanket wire mesh



1.Elastic mid-strength rock wool board: used for heat preservation, fireproofing and sound absorption for the building wall/roof,
such as curtain wall, inner wall partition and elevator hoist way, etc
2. High-strength rock wool board: used for heat preservation and heat insulation for large ships, tanks, ovens, pipelines and other industrial facilities
3. Compression-resistant rock wool board: used for roof heat preservation of airport lounge and large workshop
