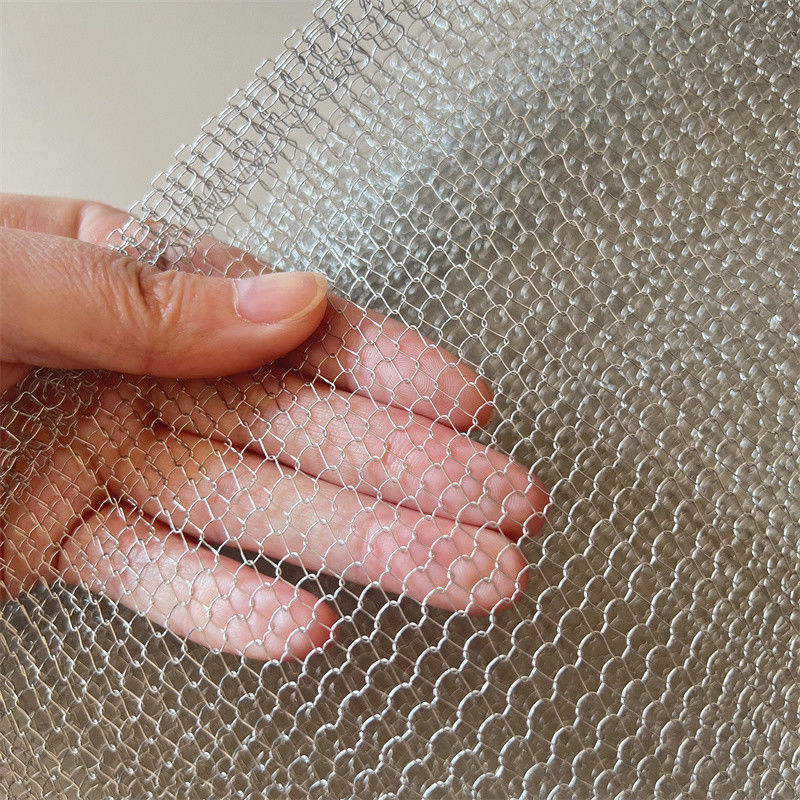

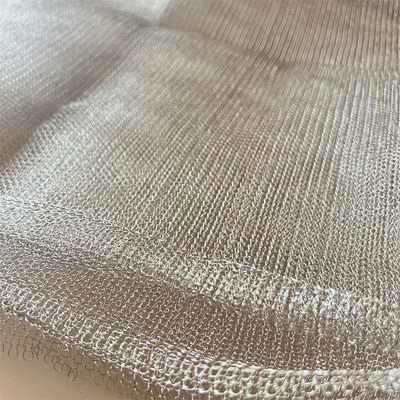

Marine Pad Insulation Mesh In SS316 WIRE

Details of Marine Pad Insulation Mesh

reusable and removable insulation blankets and pads are custom-designed and fabricated for each individual item. Close contour fit is essential for a neat appearance and proper sound and thermal performance. Multiple piece construction is frequently required for most applications. To fit your needs, our custom blankets and pads are made using a wide variety of cloths, insulation materials, and closure systems, which can handle temperatures up to 2300°F.

Insulation blankets and pads will keep your utility bill in check while increasing safety, reliability, and productivity. Removable insulation blankets reduce heat loss and thereby save money otherwise spent on energy. The savings are realized not because removable blankets perform better than conventional insulation

Speicification of Marine Pad Insulation Mesh

Features of Marine Pad Insulation Mesh

• Flexibility – Because of the knitted loop structure, Marine Pad Insulation Mesh covering has at least two-way strength and is not stiffer than the insulation it covers. It is therefore ideally suited to fitting around irregular curves and complex surfaces. It can also work as unsupported flexible blanketing.
• Strength – Because Marine Pad Insulation Mesh is metallic, it is the strongest insulation covering that can be used. It will not come apart with vibration or continuous handling. It resists penetration by sharp objects or workers walking on it, and stays intact longer than the insulation can. When you run your hand over this mesh surface, it feels like a coat of chain mail over the insulation.
• Cost of Material – In temperature ranges of 600° to 1200° F, Marine Pad Insulation Mesh competes with other insulation coverings such as glass or asbestos cloth, or hexagonal mesh. Marine Pad Insulation Mesh is lower in cost than many other coverings. At temperatures over 1200° F to 2300° F, Inconel alloy knitted Marine Pad Insulation Mesh mesh is the only covering material able to resist heat and retain strength.
• Cost and Ease of Fabrication – Marine Pad Insulation Mesh is usually bought in widths to suit the blankets to be made. It is normally cut with only a scissors and can be fabricated in many ways. Most of the time it is not sewn, reducing the need for specialized labor. In many cases, a stapler is the only other tool needed. The blankets can be made quickly and easily, saving on fabrication costs by eliminating special labor skills.

Fixing parts for Marine Pad Insulation Mesh

1. lacing anchors: stainless steel material, 14 ga pin, length is 62mm-250mm
2. Lacing hook and washer: stainless steel material, 1mm thickness material, 22mm hook and 25mm washer
3. Self locking washer/ dome: stainless steel material, 25mm washer and 22mm dome cap washer
