SS304 Stainless Steel Knitted Wire Mesh For Insulating Blankets

Model Number:	HH-INSULATION MESH
MOQ:	1 roll
Price:	contact with me to get lowest price
Payment Terms:	L/C,T/T,Western Union,MoneyGram
Supply Ability:	10000 rolls per 30 days

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001-2015

Name:

SS KNITTED MESH

Material:

SS304,309

Openings/inch:

Mesh Width:

12", 18", 24", 30", Or 42"

Install Part:

Lacing Anchor, Self Locking Washer, Hooks

Factory:

HUIHAO HARDWARE MESH

Sample:

Free If It Is In Stock

Advantage:

Wildy Applications

Packaging Details:

roll + carton or customized package

Supply Ability:

10000 rolls per 30 days

Highlight:

SS304 stainless steel knitted wire mesh

Blankets knitted stainless steel mesh

ss knitted wire mesh

Product Description

SS Knitted Mesh For Insulating Blankets

Quick details of ss knitted mesh

The common wire diameters of knitted mesh used for insulating blankets are .008″, .00095″, and .011″.Where greater strength is needed because of frequent removal such as turbines or stress relieving blankets, .011” is used. For less frequent remove, .008″ is used. For applications which involve temperature extremes such as furnaces, the .011″ diameter is recommended to reduce the weakening caused by oxidation or furnace atmosphere conditions.

The common density (openings/inch) used is 60, as knitted mesh provides the optimum balance between large openings for economy, yet small enough openings to prevent tufting. 76 density is also available.

Yield listed is for single ply. Knitted mesh is tubular in construction (double-ply) and is typically cut open by the user and installed as a single ply.

Insulating blanket knitted mesh is made in widths of two-ply stocking from 1″ to 43″. However, most applications use widths of 12″, 18″, 24″, 30″, or 42″.

Description of ss knitted mesh

SS knitted mesh can be fabricated from practically any ductile metal—most commonly 304SS, as well as Monel and 309SS, where equipment will be subjected to corrosive environments—or knitted as a metal-synthetic composite.

Specification ss knitted mesh

Alloy	TEMPERATURE RANGE	WIRE DIAMETER	PER SQ FT 1-PLY FLAT	PER LB 2-PLY FLAT
SS304	90o°F Continuous 1200°F Intermittent	0.011"	13	6.5
SS304	90o°F Continuous 1200°F Intermittent		17	8.5
SS304	90o°F Continuous 1200°F Intermittent		24	12
SS304	90o°F Continuous 1200°F Intermittent		39	19.5
SS309	1650°F
SS310	1850°F
SS321	120o°F Continuous 1500°F Intermittent		13	6.5
SS321	120o°F Continuous 1500°F Intermittent		17	8.5
INCONEL600/601	2000°F		11.8	5.9
INCONEL600/601	2000°F		21.8	10.9
Monel 400	1000°F		11.2	5.6

Install parts for ss knitted mesh

Intall parts include: lacing anchor, quiting pin, self locking washer, dome cap washer, lacing hook, lacing washers

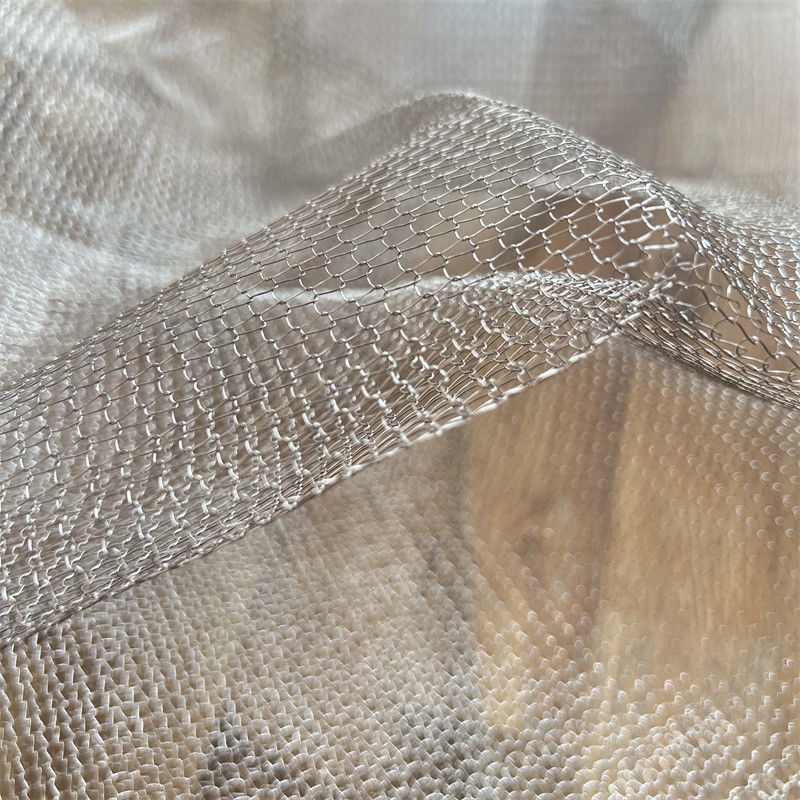

SS304 Stainless Steel Knitted Wire Mesh For Insulating Blankets 0

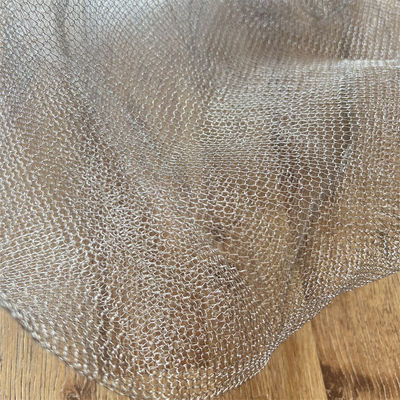

SS304 Stainless Steel Knitted Wire Mesh For Insulating Blankets 1
