Knitted Wire Mesh
Created with Pixso.

Knitted Mesh Fabric For Filtration

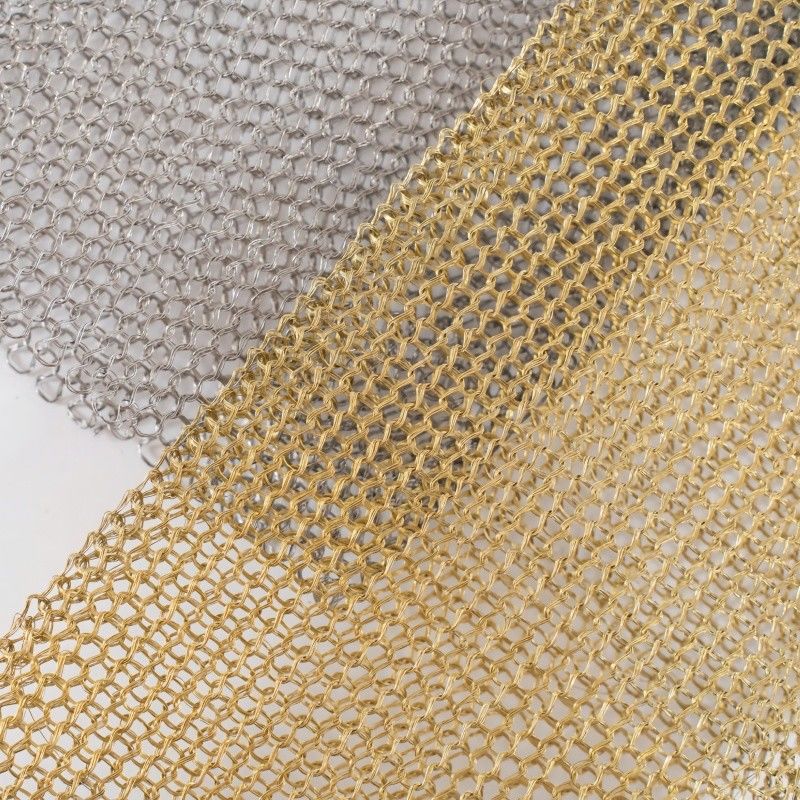

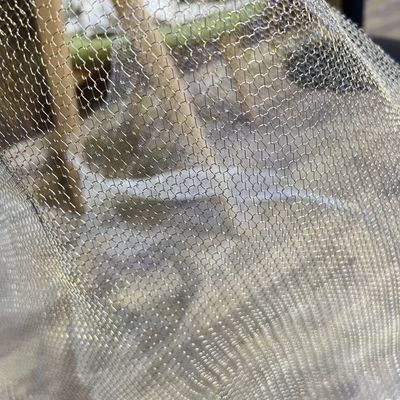

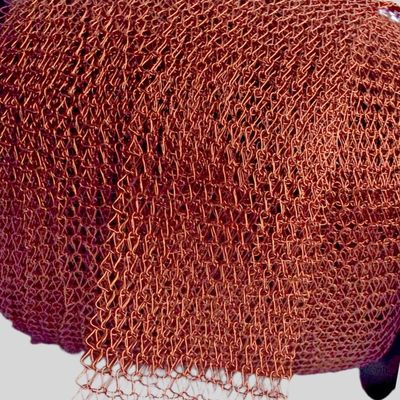

Knitted Mesh Fabric For Filtration

Knitted Mesh Fabric For Filtration

Model Number: HH-KNITTEDF
MOQ: 10 sqaure meter knitted mesh fabric
Payment Terms: L/C,T/T,Western Union,MoneyGram
Supply Ability: 100000 square meters per 20days
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
ISO9001-2015
Name:
Knitted Mesh Fabric
Material:
Stainless Steel, Copper, Brass
Most Width:
4″ 6″, 12″, 18″, 24″, 30″, OR 42″
Wire Diameter:
0.002"-0.03"
Manufacturing Method:
Machine Knitted
Structure:
Inter-locking Loops With Variable Free-space Dimensions.
Packaging Details:
roll+ carton+ wooden for knitted mesh fabric
Supply Ability:
100000 square meters per 20days
Highlight:

copper knitted wire mesh

,

copper knitted stainless steel mesh

,

stainless steel knitted wire mesh

Product Description


Knitted Mesh Fabric For Filtration


Quick details of knitted mesh fabric


For maximum strength and temperature, we recommend the 0.0095” and 0.011” wire diameters.
For applications that are either sewn or require less frequent replacement, we recommend the 0.008” wire diameter.
For maximum flexibility, we recommend the 0.006” wire diameter.

For exhaust applications, we recommend versions 309 and 310 in Stainless Steel.

Knitted mesh fabric materials: stainless steel wire, copper wire, nickel wire, galvanized iron wire, phosphor bronze wire and polypropylene fiber.

Manufacturing method: Machine knitting.

Manufactured form: Sock/tube (can be slit into a single layer).

Material structure: Inter-locking loops with variable free-space dimensions.


Description of knitted mesh fabric


Knitted mesh fabric is a wire fabric, which is made by a circular knitted machine. The various knitted material wires are knitted into a sleeve of continuous stocking of inter-linked wire loops.

The knitted mesh fabric has various materials, the main materials can be galvanized wire, stainless steel wire, copper wire, brass wire, nickel wire, monel wire and other alloy wires.

Knitted mesh fabric is normally knitted from round or flat wires ranging from various diameters. The round wire knitted mesh fabric is the most widely used type and the flat wire knitted mesh fabric can be used in the special applications according to customers' requirements.


Specification of knitted mesh fabric


WIRE DIAMETER
0.002″ – 0.030″ (MOST COMMON SIZE: .008″, .095″ & .011″
ROLL WIDTHS
1″ – 43” (MOST COMMON: 4″ 6″, 12″, 18″, 24″, 30″, OR 42″)
WEIGHT / DENSITY
0.011” ,0.095”, 0.008”
STAINLESS STEEL
13 LBS/SQFT,18 LBS/SQFT,24 LBS/SQFT
HOLE DENSITY
60 HOLES/INCH
CRIMPING
UP TO 30”


Application of knitted mesh fabric


Automotive Applications:Air Bag Filters,Exhaust Gaskets/Seals,Muffler Packing,Breathers,Catalytic Convertor,Anti-Vibration,Diesel injector filters.
Oil & Gas Applications:Mist Elimination,Insulation Jackets,Noise Suppression,Vibration Dampening, Heat Shields.
