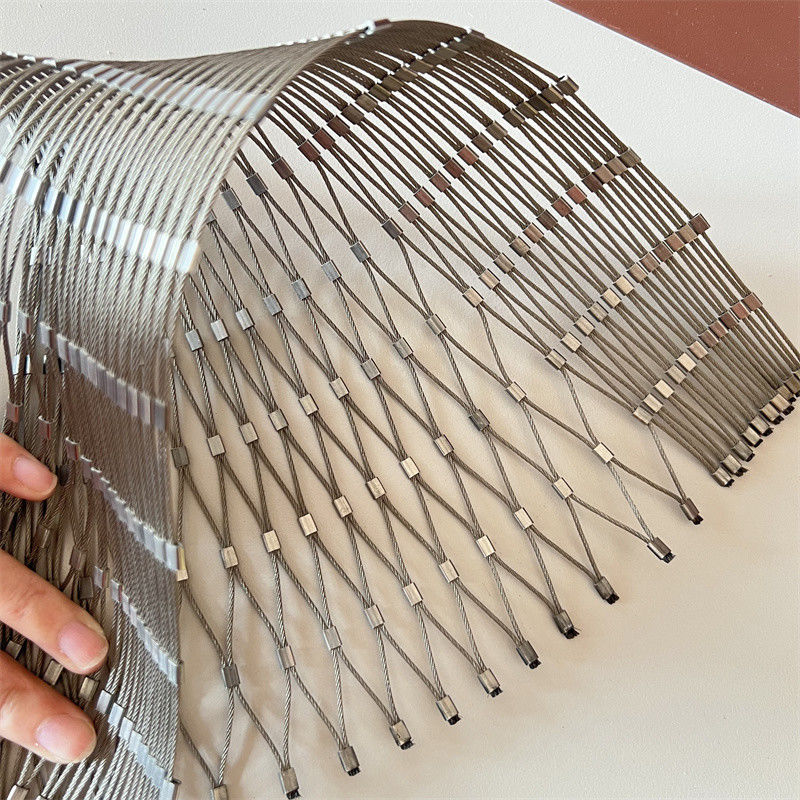

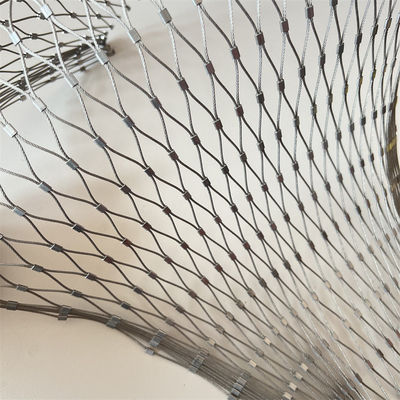

Stainless Steel Ferrule Rope Mesh Netting

Quick details of Ferrule Rope Mesh Netting

Standard mesh holes: a diamond shape with 60 degrees top angle

Mesh directions: vertical or horizontal direction, in the two directions

Different edge seal options: Sealed with standard ferrule,Sealed with eye-ferrule,Sealed by cable loops,Sealed by cable loops with standard ferrule

Rope diameter 1.2mm-3.2mm

Rope mesh size:20mm-76mm

What is Ferrule Rope Mesh Netting

Stainless steel ferrule rope mesh netting refers to a mesh-like structure formed by combining two neighboring ropes with ferrule which is made of same material as that of the rope wire. The structure fastened by ferrule makes the mesh solid and be able to withstand heavy load and impact. The standard angle of the opening is 60°, but 10° and 90°or other angles are also accepted. It’s an ideal choice for the aviary mesh, zoo mesh, safety screen, exterior building facade, balustrade, etc.

The main parameter's for production are the rope diameter, long-way and short-way of the mesh opening, and the width and length of the mesh panels. For the irregular shape of mesh, we will need a drawing to produce the mesh.

SS ferrule rope mesh has direction difference in production, the rope mesh netting can be installed in vertical or horizontal direction, in the two directions, the means of mesh length and height will be different. It is important to confirm the direction before producing the mesh.

Specification of Ferrule Rope Mesh Netting

The reason why the ferrule rope mesh netting is widely used and loved by major architects and designers is because of its irreplaceable excellence.

• Made of stainless steel 304,316 steel wire rope and stainless steel ferrule. Corrosion-resistant, not easy to rust, the service life can be as long as 30 years.

• The soft, elastic and ferrule rope mesh surface does not hurt your hands and is very safe. And it can be folded at multiple angles, which is not only suitable for the application of two-dimensional space, but also for the construction of three-dimensional space.

• The ferrule rope mesh has high breaking force and impact resistance. Very safe and the mesh is lightweight. The transparency of the stretched mesh is very high, and it is almost invisible from a distance.

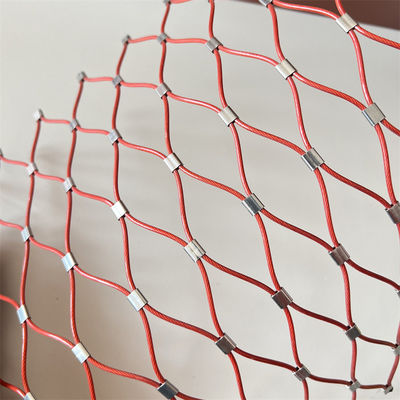

• In addition to natural color stainless steel ferrule rope mesh, we can also provide colored wire rope mesh.
