Stainless Steel Wire Rope Mesh For Marine Application

Stainless Steel Wire Rope Mesh For Marine Application

Model Number: HH-ROPEMARINE
MOQ: 10 square meters
Payment Terms: T/T,Western Union,MoneyGram
Supply Ability: 5000 rolls within 25 days
Detail Information
Place of Origin:
China
Certification:
ISO9001-2015
Name:
Wire Rope Mesh For Marine
Usage:
MARINE
Rope Dia:
1.2mm-3.2mm
Woven Type:
X-TEND K
Standard Width:
1500mm
Material:
316L Grade
Packaging Details:
wooden case in standard for wire rope mesh
Supply Ability:
5000 rolls within 25 days
Highlight:

Stainless Steel Wire Rope Mesh

,

1500mm Wire Rope Mesh

,

Marine Wire Rope Mesh

Product Description

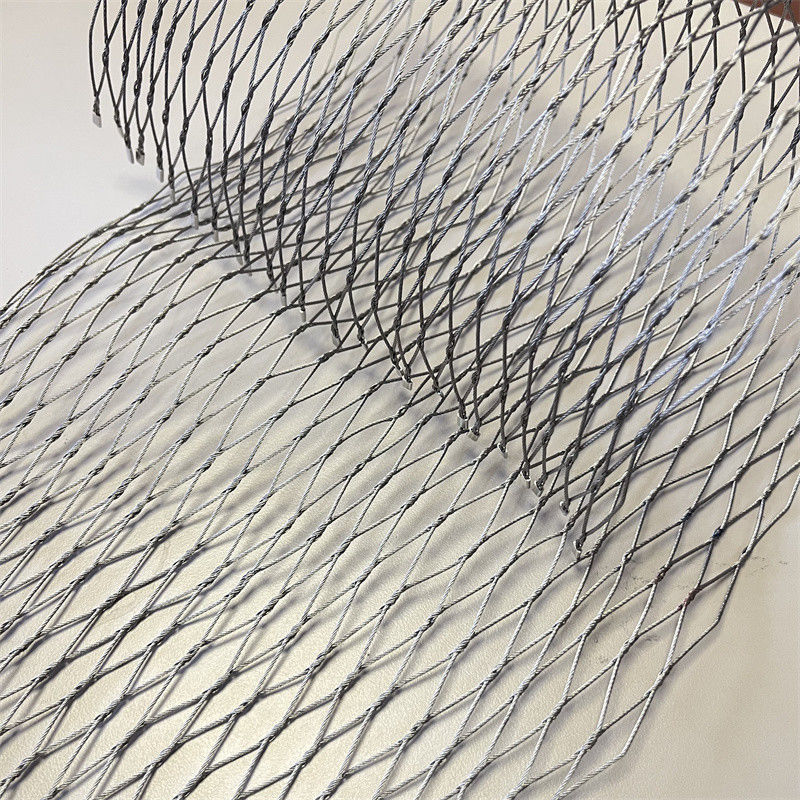

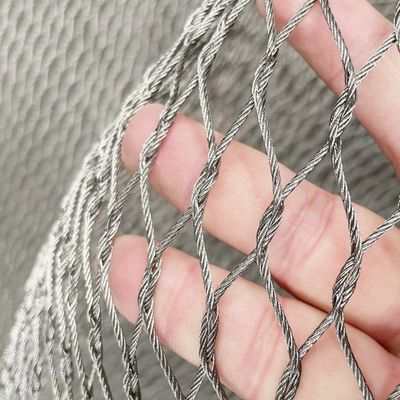

Stainless Steel Wire Rope Mesh For Marine Application



Quick details of wire rope mesh for marine



Material: stainless steel 316l grade

Rope diameter:1.2mm-3.2mm

Open size: 20mm -102mm

Standard width: 1500mm

Usage: Marine applications



Description of wire rope mesh for marine



Wire Rope Mesh, a marvel of engineering and design, stands as a versatile and indispensable material in various industries, particularly in the challenging domain of marine applications. Among the array of materials available, stainless steel wire rope mesh has emerged as a formidable choice for maritime use. Its unique properties and advantages make it a favored solution for addressing the demanding conditions posed by marine environments.



wire rope mesh for marine Specification



Cable diameter



Mesh opening size



Nominal break



inch mm inch mm lbs.
1/8 3.2 4x4 102x102 1600
1/8 3.2 3x3 76x76 1600
1/8 3.2 2x2 51x51 1600
3/32 2.4 4x4 102x102 920
3/32 2.4 3x3 76x76 920
3/32 2.4 2x2 51x51 920
5/64 2.0 3x3 76x76 676
5/64 2.0 2x2 51x51 676
5/64 2.0 1-1/2x1-1/2 38x38 676
1/16 1.6 3x3 76x76 480
1/16 1.6 2x2 51x51 480
1/16 1.6 1-1/2x1-1/2 38x38 480
1/16 1.6 1x1 25.4x25.4 480
3/64 1.2 1-1/2x1-1/2 38x38 270
3/64 1.2 1x1 25.4x25.4 270
3/64 1.2 4/5x4/5 20x20

270



Advantage of wire rope mesh for marine



stainless steel wire rope mesh with its exceptional corrosion resistance, stands as an ideal candidate for maritime use. The harsh and corrosive nature of the marine environment, characterized by the relentless exposure to saltwater and the elements, necessitates materials that can endure these conditions without succumbing to rust or corrosion. Stainless steel, as the base material, possesses inherent resistance to corrosion, ensuring the mesh remains robust and functional even when exposed to the corrosive marine atmosphere for extended periods.



Moreover, the durability and longevity of stainless steel wire rope mesh contribute significantly to its suitability for marine applications. The material's inherent strength and resilience enable it to withstand the stresses imposed by the dynamic marine environment. From withstanding the forces of waves and winds to enduring the constant movement and vibration experienced on a vessel, stainless steel wire rope mesh remains structurally intact over time, minimizing maintenance efforts and costs.
