Name: Stainless Steel Rope Mesh For Zoo Protection
Brand: Anping County Huihao Wire Mesh Manufacture Co., Ltd
SKU: HH-SSPROTECTION
Availability: InStock

Model Number:	HH-SSPROTECTION
MOQ:	10 square meters
Payment Terms:	T/T,Western Union,MoneyGram
Supply Ability:	5000 rolls per 25 days

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001-2015

Name:

Stainless Steel Rope Mesh

Usage:

Zoo Protection

Hole Shape:

Diamond Hole

Key Words:

Zoo Protecting Mesh

Mesh Opening:

20mm-100mm

Rope Diameter:

1.2mm-3.2mm

Surface Treatment:

Silver Or Black Oxide Finish

Width Standard:

1500mm, Others Can Be Customized

Packaging Details:

waterproof paper inner packing,outside carton

Supply Ability:

5000 rolls per 25 days

Highlight:

Diamond Hole Stainless Steel Rope Mesh

1500mm Stainless Steel Rope Mesh

Zoo Protection ss rope mesh

Product Description

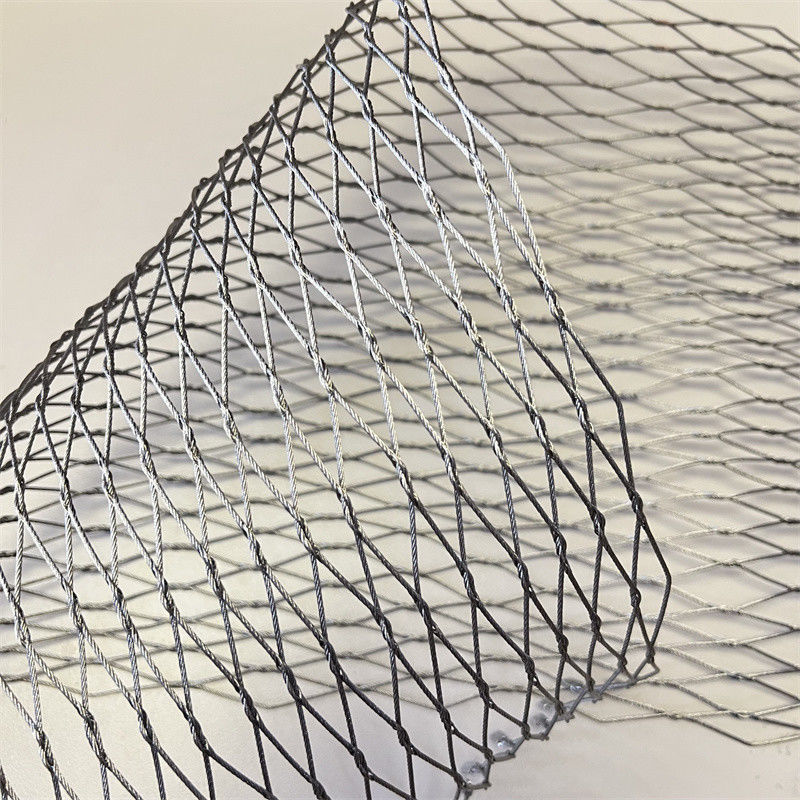

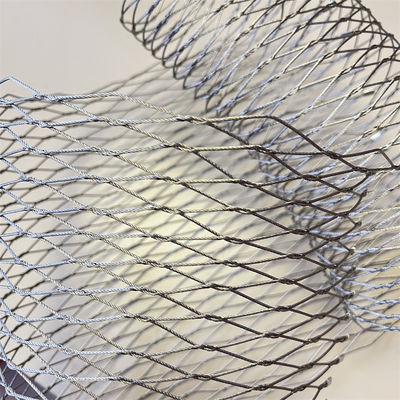

stainless steel rope mesh for zoo mesh animals protection

Quick details of stainless steel rope mesh

The stainless steel rope mesh is manufactured using a unique hand-woven interlocking technique from standard 7 x 7 and 7x 19,stainless steel cable to create diamond openings from 1” through 4”(1"*1", 2‘’*2‘’,3‘‘*3‘’,4‘’*4”)

Material: stainless steel 304, 304L, 316, 316L.

Surface treatment: silver or black oxide finish.

Construction of wire cable: 7 × 7, 7 × 19.

Cable diameter: 1.2–3.2 mm.

Mesh opening sizes: 20–100 mm.

Stainless steel rope mesh generally consists of two categories. The stainless steel knotted rope mesh is very similar with the ferrule rope mesh. The difference is that stainless steel wires are winded and interwoven to form a knotted structure instead of using Ferrule. The knotted structure is solid and unmovable, which ensures the uniformity of the mesh openings. The mesh wires are stretched to create an angle of 90°. The mesh is often used for aviary mesh or zoo mesh

Specification details of stainless steel rope mesh

Rope Structure	Rope Diameter		Opening Size		Breaking Force
Rope Structure	Inch	mm	Inch	mm	KN
7 × 19	1/8	3.2	3.6″ × 3.6″	90 × 90	7.38
7 × 19	1/8	3.2	3″ × 3″	76 × 76	7.38
7 × 19	1/8	3.2	2″ × 2″	51 × 51	7.38
7 × 7	3/32	2.4	4″ × 4″	102 × 102	4.18
7 × 7	3/32	2.4	3.6″ × 3.6″	90 × 90	4.18
7 × 7	3/32	2.4	3″ × 3″	76 × 76	4.18
7 × 7	3/32	2.4	2.4″ × 2.4″	60 × 60	4.18
7 × 7	3/32	2.4	2″ × 2″	51 × 51	4.18
7 × 7	5/64	2	3″ × 3″	76 × 76	3.17
7 × 7	5/64	2	2.4″ × 2.4″	60 × 60	3.17
7 × 7	5/64	2	2″ × 2″	51 × 51	3.17
7 × 7	5/64	2	1.5″ × 1.5″	38 × 38	3.17
7 × 7	1/16	1.6	3″ × 3″	76 × 76	2.17
7 × 7	1/16	1.6	2″ × 2″	51 × 51	2.17
7 × 7	1/16	1.6	1.5″ × 1.5″	38 × 38	2.17
7 × 7	1/16	1.6	1.2″ × 1.2″	30 × 30	2.17
7 × 7	1/16	1.6	1″ × 1″	25 × 25	2.17
7 × 7	3/64	1.2	2″ × 2″	51 × 51	1.22
7 × 7	3/64	1.2	1.5″ × 1.5″	38 × 38	1.22
7 × 7	3/64	1.2	1.2″ × 1.2″	30 × 30	1.22
7 × 7	3/64	1.2	1″ × 1″	25 × 25	1.22
7 × 7	3/64	1.2	0.8″ × 0.8″	20 × 20	1.22

Features of stainless steel rope mesh

1)Stainless steel rope provides the highest corrosion resistance.
2)Elegant and robust of rope mesh
3)Light, robust yet transparent.
4)UV and weather resistant finished treatment for rope mesh
5)rope mesh is Flexible and pliable.
6)Climb resistant and prevents a secure foothold.
7)The minimum visual impact on views.
8)Good price-benefit-ratio from huihao company
9)Easy installation and low maintenance.
10)Weave opening, meet any exact specification.
