SUS Wire Rope Mesh For Green Wall System

Quick details of wire rope mesh

Material: stainless steel 304. 304l, 316, 316l

Mesh Aperture: 51mm-203mm

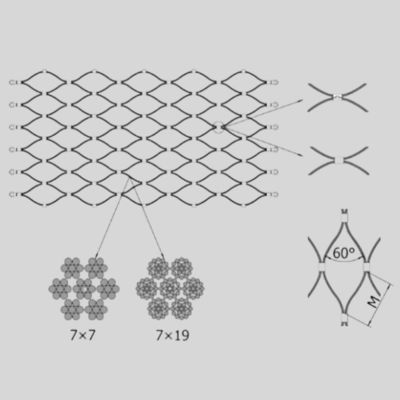

Opening angle: 20°, 30°, 60°, 70° and 75° are set as standard opening, and optimal stretched at 60°

Wire rope structure:7x7, 7x19

rope diameter:1.2mm-4mm

Description of wire rope mesh

We have prepared a variety of accessories of the same color for your use getting a better effect. Once the stainless steel cable mesh was developed, it was favored by customers everywhere.
The black stainless steel wire rope mesh is hand-woven from 304/316 steel wire rope, and after a special surface treatment process, it forms a black oxide coating, which gives customers more choices.

Specification of wire rope mesh

Application of wire rope mesh

Green wall system provides a sturdy and safe structure for plant climbing and is suitable for all kinds of climbing plants. Plants grow along the green wall system constantly purify the air and bring people a relaxed life.

Green wall systems are divided into flexible trellis systems and plant climbing net systems that are suitable for dense facade greening and plants with a high leaf area coefficient.

It can be used for fixing and securing both ends of the wire rope, or clamping the wire rope that crosses at both ends to form a trellis system for green plants. It ensures the firmness and stability of the wire rope, thus providing support for the growth of green plants.

Features of wire rope mesh

stainless steel wire rope mesh not only has a better gorgeous and advanced appearance but also has the same advantages with the natural color stainless steel wire rope mesh.
1.Soft and flexible. It has extra-large resistance to breaking force and almost unbreakable.
2.Weatherproof, long service life.
3.The structure is simple, durable. Various specifications and a wide range of applications.
4.Light weight, good perspective, smooth surface, and luxurious appearance.
5.It is flexible and can adapt to a variety of shapes and designs.
