Stainless Steel Wire Rope Zoo Mesh 304 304L 316 306L Material

Model Number:	HH-ZOOM
MOQ:	10 square meters
Payment Terms:	L/C,T/T,Western Union,MoneyGram
Supply Ability:	50000 square meters per 25 days

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO9001-2015

Features:

Easy To Install And Flexibility,

Name:

Rope Zoo Mesh

Material:

Stainless Steel 304,304L,316,306L Etc

Large And Fierce Animals:

51-152mm

Small Cat Animals:

38-76MM

Large Birds:

51-102MM

Small Birds, Aviary:

20-38MM

Open Angle:

20°, 30°, 60°, 70° And 75°

Packaging Details:

inter with plastic flim + wooden case

Supply Ability:

50000 square meters per 25 days

Highlight:

Wire Rope Zoo Mesh

304 stainless steel zoo mesh

rope zoo mesh

Product Description

Stainless Steel Wire Rope Zoo Mesh

Quick details of Stainless Steel Wire Rope Zoo Mesh

Material:AISI 304, AISI304L, AISI 316 / AISI 316L

Mesh Opening: 20mm-152mm

Color: customized colored

SS Rope zoo mesh can be manufactured into horizontal diamond and vertical diamond direction, which affects the cost. Sometimes with the same mesh width and length, when they are of different diamond directions, it will cause much difference in cost. If the direction of the diamond isn't so important to your design, you can consider our suggestion

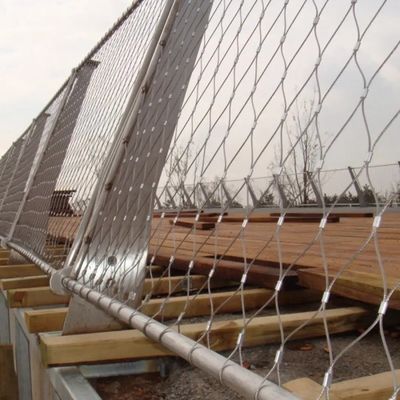

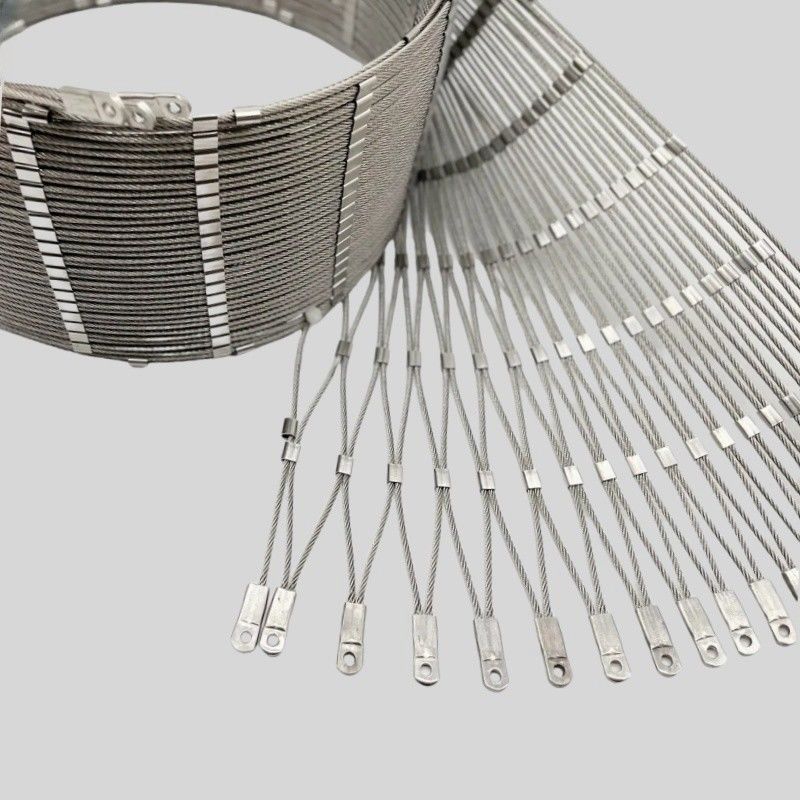

Description of Stainless Steel Wire Rope Zoo Mesh

Wire rope zoo mesh are made of various materials such as AISI 304, AISI304L, AISI 316 / AISI 316L, including knotted nets and ferrule nets. The nets can be used in vertical or horizontal directions. Common mesh sizes range from 20mm x 20mm to 300mm x 300mm, and stainless steel rope mesh diameters range from 1.0mm to 4.0mm. We can customize the braid openings, wire diameters and sizes infinitely to meet your exact specifications. Contact us and let architects and designers recommend specifications corresponding to various loads and uses to meet your needs.

Specification of Stainless Steel Wire Rope Zoo Mesh

Stainless Steel Wire Rope Zoo Mesh
Code	Wire Rope Construction	Min. Breaking Load (KN)	Wire Rope Diameter		Aperture		Application
Code	Wire Rope Construction	Min. Breaking Load (KN)	Inch	mm	Inch	mm	Application
1	7 x 19	7.38	1/8	3.2	6" x 6"	152 x 152	large and fierce animals like tiger, lion, leopard, orangutan
2	7 X 19	7.38	1/8	3.2	5" x 5"	127 x 127
3	7 X 19	7.38	1/8	3.2	4.7" x 4.7"	120 X 120
4	7 x 19	7.38	1/8	3.2	4" x 4"	102 x 102
5	7 x 19	7.38	1/8	3.2	3.6" x 3.6"	90 x 90
6	7 x 19	7.38	1/8	3.2	3" x 3"	76 x 76
7	7 X 19	7.38	1/8	3.2	2.4" x 2.4"	60 x 60
8	7 x 19	7.38	1/8	3.2	2" x 2"	51 x 51

9	7 x 7	4.18	3/32	2.4	6" x 6"	152 x 152	large and fierce animals like tiger, lion, leopard, orangutan, monkey
10	7 x 7	4.18	3/32	2.4	5" x 5"	127 x 127
11	7 x 7	4.18	3/32	2.4	4" x 4"	102 x 102
12	7 x 7	4.18	3/32	2.4	3.6" x 3.6"	90 x 90
13	7 x 7	4.18	3/32	2.4	3" x 3"	76 x 76
14	7 x 7	4.18	3/32	2.4	2.4" x 2.4"	60 x 60
15	7 x 7	4.18	3/32	2.4	2" x 2"	51 x 51

16	7 x 7	3.17	5/64	2	3" x 3"	76 x 76	small cat animals like mokey
17	7 x 7	3.17	5/64	2	2.4" x 2.4"	60 x 60
18	7 x 7	3.17	5/64	2	2" x 2"	51 x 51
19	7 x 7	3.17	5/64	2	1.5" x 1.5"	38 x 38

20	7 x 7	2.17	1/16	1.6	4" x 4"	102 x 102	large birds
21	7 x 7	2.17	1/16	1.6	3" x 3"	76 x 76
22	7 x 7	2.17	1/16	1.6	2.4" x 2.4"	60 x 60
23	7 x 7	2.17	1/16	1.6	2" x 2"	51 x 51
24	7 x 7	2.17	1/16	1.6	1.5" x 1.5"	38 x 38	small birds
25	7 x 7	2.17	1/16	1.6	1.2" x 1.2"	30 x 30
26	7 x 7	2.17	1/16	1.6	1" x 1"	25.4 x 25.4

27	7 x 7	1.22	3/64	1.2	4" x 4"	102 x 102	large birds
28	7 x 7	1.22	3/64	1.2	3" x 3"	76 x 76
29	7 x 7	1.22	3/64	1.2	2" x 2"	51 x 51
30	7 x 7	1.22	3/64	1.2	1.5" x 1.5"	38 x 38	small birds, aviary
31	7 x 7	1.22	3/64	1.2	1.2" x 1.2"	30 x 30
32	7 x 7	1.22	3/64	1.2	1" x 1"	25.4 x 25.4
33	7 x 7	1.22	3/64	1.2	0.8" x 0.8"	20 x 20

Material of Wire Rope zoo Mesh: Stainless steel 304,304L,316,306L etc.

SS304	(%) C:≤0.07, Si :≤1.0, Mn :≤2.0, Cr :17.0-19.0, Ni :8.0-11.0, S :≤0.03, P :≤0.035
SS316	(%) C:≤0.08, Si:≤1.00, Mn:≤2.00, P≤:0.035, S:≤0.03, Ni:10.0-14.0, Cr:16.0-18.5
SS316L	(%)C:≤0.03, Si:≤1.00, Mn:≤2.00, P:≤0.045, S:≤0.030, Cr:16.0～18.0, Ni:12.0～15.0

Details and accessories

1. Easy to install, has good flexibility, adapt to complex terrain and installation angle.

2. Stainless steel cable net of all the parameters can be modified according to customer requirements.

3. Made of high-quality stainless steel wire, strong corrosion resistance, light weight, high tension, the extreme situation can also maintain stability.

4. The service life of up to several decades, maintenance costs are very low.

5. Stainless steel decorative cable network with diamond-shaped openings, simple and beautiful, easy to clean.
