products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Wire Rope Mesh
Created with Pixso.

Interwoven Stainless Steel Rope Mesh

Interwoven Stainless Steel Rope Mesh

Model Number: HH-SSROPE
MOQ: 10 square meters
Payment Terms: L/C,Western Union,T/T,MoneyGram
Supply Ability: 50000 square meters per 20 days
Detail Information
Place of Origin:
CHINA
Certification:
ISO9001-2015
Name:
Interwoven Stainless Steel Rope Mesh
Rope Diameter:
1.2mm-3.2mm
Mesh Open:
20mm -120mm
Material:
7*7 Or 7*19 Structure Stainless Steel Wire Cable
Feature:
Light Weight, Good Flexibility, High Strength,
Application:
Zoo Mesh, Animal Enclosure, Bird Aviary Mesh
Packaging Details:
wooden case
Supply Ability:
50000 square meters per 20 days
Highlight:

7*7 stainless steel rope mesh

,

zoo stainless steel rope mesh

,

7*7 stainless steel wire rope mesh

Product Description

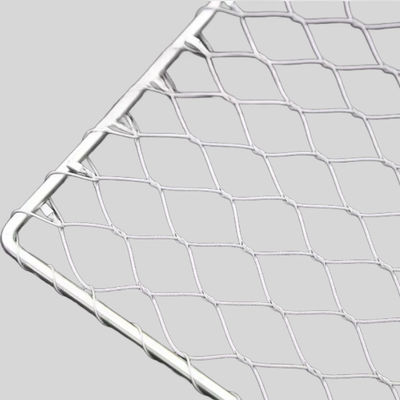

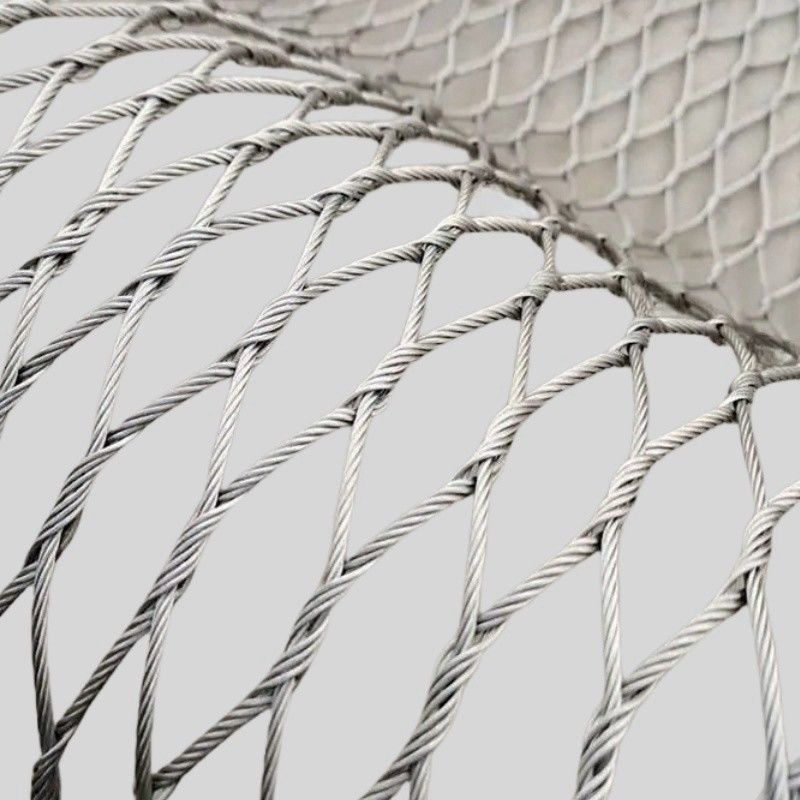

Interwoven Stainless Steel Rope Mesh


Quick details of Interwoven Stainless Steel Rope Mesh


Material: stainless steel 304/ 316

Wire type: wire rope or cable

Mesh Opening: 20mm - 120mm

Rope diameter: 1.2mm -3.2mm

Weave type: handle interwoven Type


Description of Interwoven Stainless Steel Rope Mesh


Interwoven stainless steel ROPE mesh is woven by hand, so it is also called  handwoven stainless steel rope mesh. Its material are generally 7*7 or 7*19 structure stainless steel wire cable. This kind of mesh has the advantages of light weight, good stength and high transparency.It is especially suitable to be used as zoo enclosure mesh or aviary mesh.Compared with other ordinary wire mesh, ROPE MESH is more suitable for large-span installation, it has a good resistance to storms. And it also has good protection effect for flying bird or land animals because of its flexibility and elasticity. HUIHAO has rich experience in producing the hand-woven cable mesh, and we had also undertaken many installation projects for zoo enclosures and aviaries. This kind of mesh also can be used as safety or protective mesh according to our clients' requirement.


Specification of Interwoven Stainless Steel Rope Mesh


Cable Diameter Mesh Opening Size
inch mm inch mm
1/8 3.2 4.75 x 4.75 120 x 120
1/8 3.2 4 x 4 102 x 102
1/8 3.2 3.55 x 3.55 90 x 90
1/8 3.2 3 x 3 76 x 76
1/8 3.2 2 x 2 51 x 51
3/32 2.4 4 x 4 102 x 102
3/32 2.4 3.55 x 3.55 90 x 90
3/32 2.4 3 x 3 76 x 76
3/32 2.4 2.4 x 2.4 60 x 60
3/32 2.4 2 x 2 51 x 51
5/64 2.0 3 x 3 76 x 76
5/64 2.0 2.4 x 2.4 60 x 60
5/64 2.0 2 x 2 51 x 51
5/64 2.0 1-1/2 x 1-1/2 38 x 38
1/16 1.6 3 x 3 76 x 76
1/16 1.6 2 x 2 51 x 51
1/16 1.6 1-1/2 x 1-1/2 38 x 38
1/16 1.6 1.2 x 1.2 30 x 30
1/16 1.6 1 x 1 25.4 x 25.4
3/64 1.2 1-1/2 x 1-1/2 38 x 38
3/64 1.2 1.2 x 1.2 30 x 30
3/64 1.2 1 x 1 25.4 x 25.4
3/64 1.2 4/5 X 4/5 20 x 20


Applications of Interwoven Stainless Steel Rope Mesh


Flexible stainless steel rope mesh, inter-woven type in particular, is usually used in animal or bird cages, which is also called zoo mesh.The mesh has strong tensile strength and high flexibility, high transparence and wide span. The flexible s.s. cable mesh has unreplacable advantages compared with other mesh products in many aspects like practicability, security, aesthetic property and durability etc.
