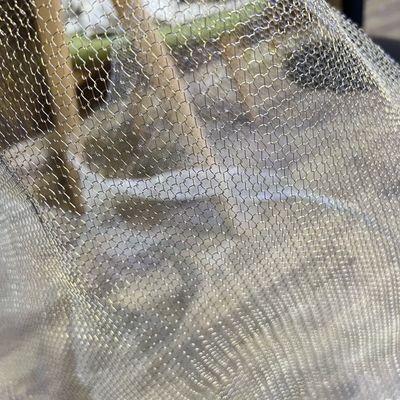

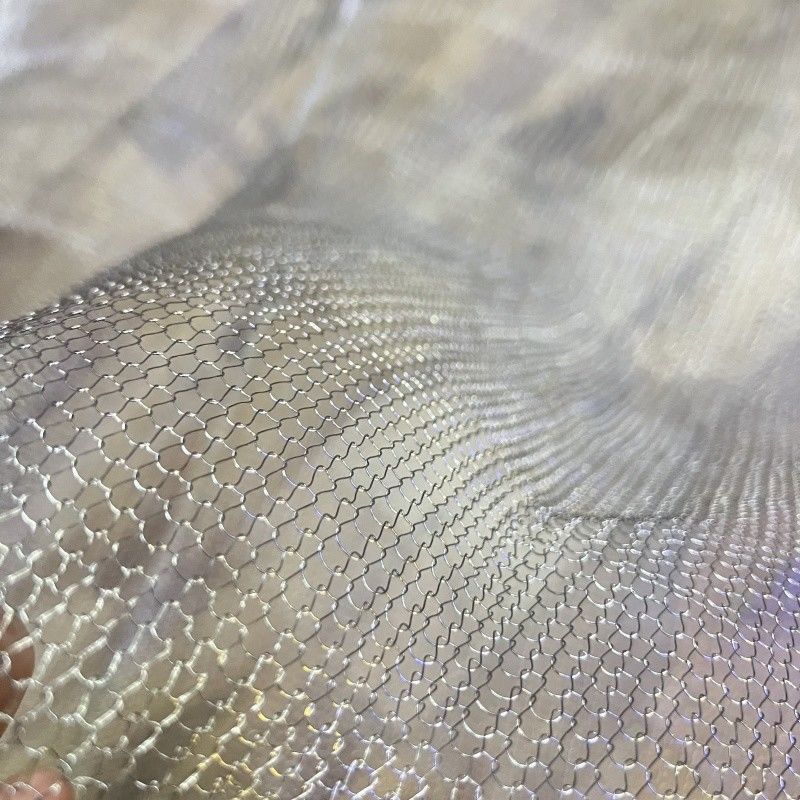

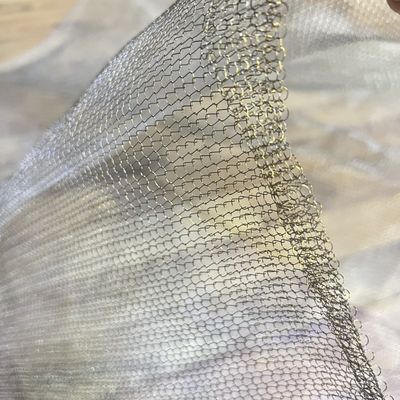

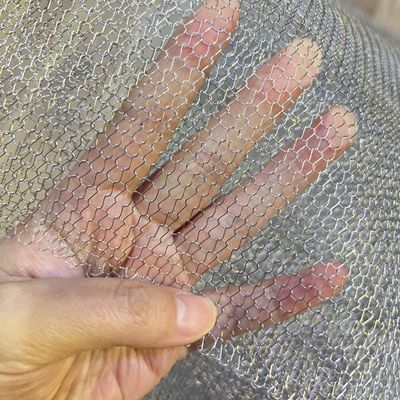

Stainless Steel Knitted Wire Mesh For Removable Insulation Covers Pads

Quick details of Knitted Wire Mesh

• Open size: (2x3mm) to (4x5mm) to the (12x6mm) also according to customer requirements on the hole size fine-tuning. The cutout form of the large hole and the orifice cross-arranged (the size of the holes in the longitudinal direction is the same,width is different).
• woven type: Single wire woven; Double wires woven; several wires woven
• wire diameter: 0.07-0.55mm; common wire diameter: 0.2mm-0.25mm
• Mesh width:40mm 80mm 100mm 150mm 200mm 300mm 400mm 500mm 800mm 100mm etc
• Flattened: The most common form of knitted mesh. After knitting, the tubular sock is flattened into 2 plys as it is made into rolls.
• Crimped: Flattened mesh can be run through corrugating rollers to create crimped mesh. This makes the material thicker and more springy

Description of Knitted Wire Mesh

Our knitted wire meshes have a wide range of applications. For example, they are used in the field of environmental and process engineering, as vandalism protection in seat covers of public transport systems and in the automotive industry. We produce and develop tailor-made solutions for individual and series production, entirely according to the wishes and needs for our customers. Optimally matched, the three-dimensional knitted wire mesh ensures a high stretchability and resilience depending on the intend use.

Knitted wire mesh’s strength, stretch and flexibility makes it easy to work with and allows the mesh to conform to irregular shapes and curves. The most common specification is 60 density, with a .011” wire diameter that is type 304 stainless steel. This contains 60 openings/sq. in. and is stocked in rolls with widths of 12“, 18”, 20”, 24“, 26”, 30”, 36”, 38”, 42” and 48”.

Specification of Knitted Wire Mesh

304 Stainless Steel

304 Stainless operating temperature range: < 1200° (900°F continuous)

321 Stainless Steel

321 Stainless operating temperature range: < 1500° (1200°F continuous)

Iconel 601

Inconel 601 operating temperature range: < 2300° (1800°F continuous)

Feature of Knitted Wire Mesh

High strength and overall rigidity

Good air permeability

Excellent filtering accuracy

Good filter resistance, mechanical strength, abrasion resistance,

heat resistance and cold resistance

Easy to clean, simple assembly, long replacement cycle.

Special sizes can be customized.

Application of Knitted Wire Mesh

Through a wide selection of basic materials and additives result a wide range of applications, for example:

• Filter technology
• Environmental and process engineering
• Bearing and damping elements/ vibration decoupling
• Vandalism protection
• Silencer
• Heat-/thermal-isolation
• Sealing elements
• Separation applications
• Filling material to avoid death volume
• EMC-applications
